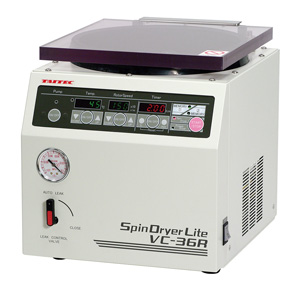

TAITEC VC-36R Centrifugal Concentrators (+5℃ ~ +70℃; 300 ~ 2000 r/ min)

Temperature range: +5℃ above RT to +70℃

Rotational speed: 300 to 2000r/min (*1)

Vacuum release: Timer automatic release (also Manual)

Rotor rotation system: Magnet drive

Timer: 1min to 99h59min (Digitally)

Lid/Chamber material: Lid: PVC, Chamber: Stainless steel SUS304 (Teflon coated)

Vacuum gauge: 0 to -0.1MPa (Bourdon tube)

Suction nozzle outer dia.: Rc 1/2 (φ13.8mm)

Sterilization filter: 0.2μm

Other function: Pump switch interlocking outlet × 1 (to 7 A)

(The Pump starts after reaching 85% of the preset rotational speed.)

Safe devices/protections: Overcurrent protection, Heater/Rotation/Pump is stopped when the Lid is open, High temp., Various indication (Nonvolatile memory, Temp. sensor, Heater output, High/Low temp., Motor, Rotational speed limit).

Dimensions/Weight: 310 (W) x 380 (D) x 343 (H)mm; Approx. 24kg

Power supply (*2): AC100V/2.7A /Max.10A(Need a step-down transformer)

Catalog

(*1)VC-36R: Max. 440 x g *Reference value in the Outer perimeter of the 36R Rotor.

(*2)The current will increase according to the use of the Pump interlocking outlet.
