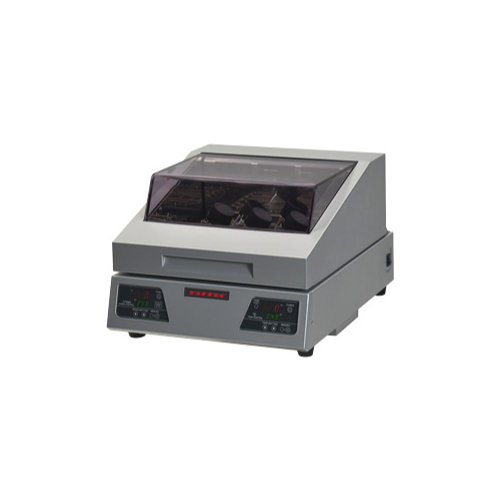

TAITEC VBR-104 Constant Temperature Incubator Shaker With Newmax Drive (+8℃ above RT to +60℃ ; ±0.5℃ ~ ±1.0℃)

Temperature range (*1): +8℃ above RT to +60℃

Temp. control accuracy (*2): ±0.5℃ to ±1.0℃

Shaking motion: Orbital shaking

Speed range: 50 to 500r/min

Platform size: 240 x 220mm (Max. inside height: 168mm)

Ambient temp. range: +5℃ to +30℃

Heating method: Heater 80W

Safety devices/functions: Fuse, Self-diagnosis function for temp. control error, Braking when hood open, Motor overload/Over-voltage protection

Dimensions (W x D x H): 375 x 445 x 260mm

Maximum load: 1kg (Platform included)

Weight: Apporx. 20kg

Power supply: AC100V-240V/2A (universal power supply)

Standard accessories: Sticky sheet ×1pc

(*1)It may not reach the maximum temperature by the surroundings.

(*2)The value at the ambient temperature of 25℃.
