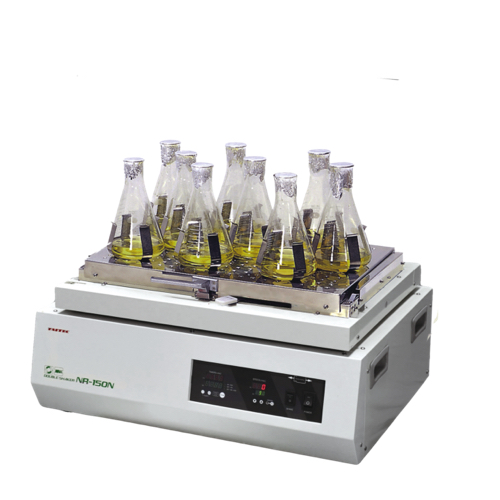

TAITEC NR-150N Double shaker (25~ 250 r/min; 10~50 mm)

Shaking motion: Reciprocal/Orbital

Shaking speed: 25 to 250 r/min

Shaking width: 10 to 50 mm, Stepless (Default: 25 mm)

Platform dimensions and Capacity: 600 × 400 mm, Erlenmeyer flask 500 mL × 15 (Two-tier platform 30 pcs), 5 L × 3

Maximum load: Approx. 26 kg (Shaking platform and vessel holders are included) (*1)

Shaking duration integrator

Shaking duration integrator

Timer function (setting/display: 1 min to 99 h 59 min)

*When the timer function is not being used, it can count the time.

•ON-END •OFF-ON •OFF-ON-END

Safety devices/functions: Motor protection circuit at overload, Fuse

Dimensions (W×D×H): 760 × 585 × 350 mm

Weight: Approx. 70 kg

Power supply: AC100V-240V/0.5A (universal power supply)

Standard accessories: Universal shaking platform MT-6040C × 1 set (Two-tier platform: 2 sets), Spacer × 4 pcs (1 mm thick × 2 pcs and 2 mm thick × 2 pcs), Slip prevention sheet × 4 pcs

(*1)When the clamps are attached to the platform of NR-150N, the max. load of NR-150N is approx. 19 kg and that of Two-tier platform is approx 10 kg.

(*2)The height is maximum value (Upper platform height can be adjusted.)
