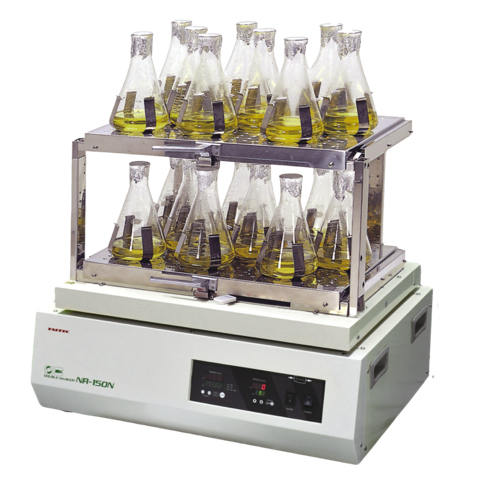

TAITEC Double platform NR-150N Large Sized Shaker (25 to 160 r/min; 10 to 50 mm)

Shaking motion: Reciprocal/Orbital

Shaking speed: 25 to 160 r/min

Shaking width: 10 to 50 mm, Stepless (Default: 25 mm)

Platform dimensions and Capacity: 600 × 400 mm, Erlenmeyer flask 500 mL × 15 (Two-tier platform 30 pcs), 5 L × 3

Ambient temp. range: +5℃℃ to +40℃

Maximum load: Approx. 26 kg (Shaking platform and vessel holders are included) (*1)

Shaking speed display: Digital

Integrating indicator of shaking time: 0.1 - 999.9h (with auto-reset function)

Safety device / function: Motor protection circuit at overload, Fuse

Dimensions (W×D×H): 760 × 585 × 789 mm (*2)

Weight: Approx. 83 kg

Power supply: AC100-240V /0.5A

Standard accessories: Universal shaking platform MT-6040C × 1 set (Two-tier platform:2 sets), Spacer × 4 pcs (1 mm thick × 2 pcs and 2 mm thick × 2 pcs),

(*1)When the clamps are attached to the platform of NR-150N, the max. load of NR-150N is approx. 19 kgand that of Two-tier platform is approx 10 kg.

(*2)The height is maximum value (Upper platform height can be adjusted.)
