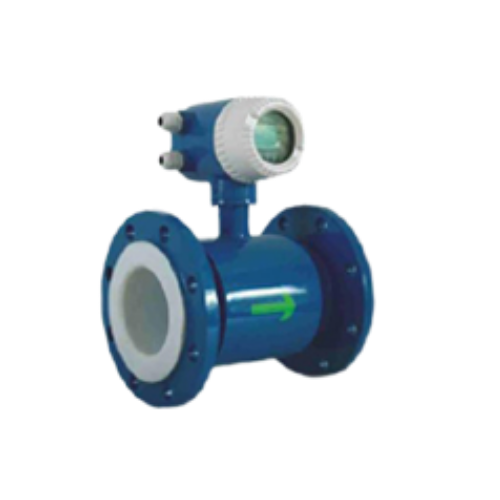

T-measurement TEM82E Electromagnetic Flow Meter

Size: DN6~DN2800

Medium: Conductive liquid, slurry

Medium Temperature: E grade∠60℃.H grade∠180℃

Conductivity:≥5 u S/cm

Accuracy:±0.25% . ±0.5%

Repeatability: ±0.1%. ±0.17%

Rated Pressure: 0.6, 1.0, 1.6, 2.5, 4.0, 6.4 MPa (or specified by customer)

Display: Instantaneous flow rate, total flow, velocity, flowrate percentage with backlight

Signal Output: 4-20mA current output, pulse output, RS-485, Hart.

Power Supply: AC:85V~265V, DC:18V~38V

Velocity:0.05~12m/s ( 0.1~15m/s as required )

Liner: PU(DN25~DN500)/ F4(PTFE) (DN25~DN1600)/

F46(FEP) (DN10~DN200)/ PFA (DN10~30)

Flowing Direction: Forward, Reverse

Electrode Material: 316L, Pt, Ta, Ti, HB, HC, WC

Electrode Number: 3~6 pcs

Ambient: Temperature: -30~+60℃, Humidity: ＜90%

Protocal: RS-485/ Hart
