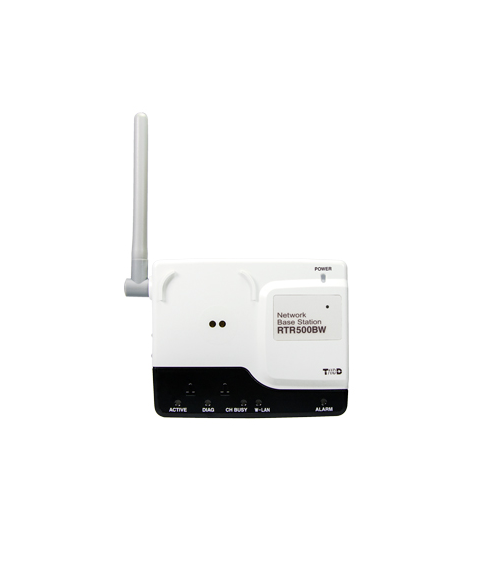

T&D RTR500BW Network Base Station

Compatible Devices

Remote Units: RTR500B Series (RTR501B / 502B / 503B / 505B / 507B) Including L Type

RTR-500 Series (RTR-574 / 576) Including S Type (*1)

RTR-600 Series (RTR-602S / 602L / 602ES / 602EL) (*1)

Repeaters: RTR500BC

Other devices

Maximum Number of Registrations

Remote Units: 50 units

Repeaters: 10 units x 4 groups

Communication Interfaces

Short Range Wireless Communication

US Model: Frequency Range: 902 to 928 MHz

RF Power: 7 mW

Transmission Range: About 150 meters (500 ft) if unobstructed and direct (*4)

EU Model: Frequency Range: 869.7 to 870 MHz

RF Power: 5 mW

Transmission Range: About 150 meters if unobstructed and direct

Wired LAN (RJ45 connector 100 Base-TX/10 Base-T)

Wireless LAN (IEEE 802.11 a/b/g/n, WEP (128bit) / WPA-PSK(TKIP) / WPA2-PSK (AES))

Bluetooth 4.2 (Bluetooth Low Energy) For Settings

USB 2.0 (Mini-B connector) For Settings

Optical Communication (proprietary protocol)

Communication Time

Data Download Time (for 16,000 readings)

Via wireless communication: About 2 minutes

An additional 30 seconds should be added for each Repeater. (*5)

External Output Terminal:

PhotoMOS Relay Output

OFF-State Voltage: AC/DC 50 V or less

ON-State Current: 0.1 A or less

ON-State Resistance: 35 Ω

Communication Protocol: HTTP, HTTPS, FTP, SNTP, DHCP, DNS

Power:

AC Adaptor (AD-05A4 or AD-05C1)

PoE (IEEE 802.3af)

Dimensions: H 83 mm x W 102 mm x D 28 mm (excluding antenna)

Antenna Length: 115 mm

Weight Approx. 130 g

Operating Environment Temperature: -10 to 60 °C

Humidity: 90 %RH or less (without condensation)
