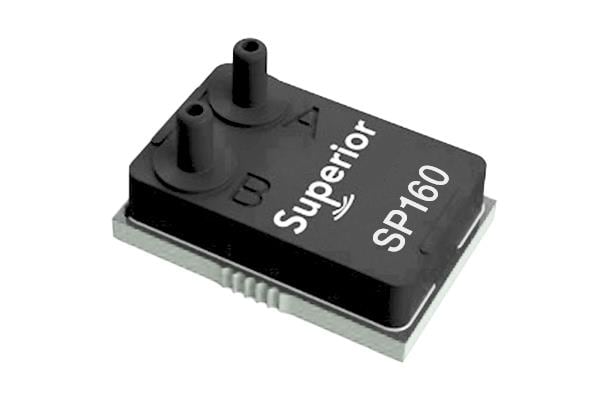

Superior Sensor Technology SP160-SM02-R Board Mount Pressure Sensors Differential Low Pressure Sensors Spirometry Applications

Accuracy: 0.1 %

Port Size: 4.8 mm

Port Type: Dual Axial Barbless

Resolution: 16 bit

Output Type: Digital

Pressure Type: Differential

Interface Type: I2C, SPI

Mounting Style: SMD/SMT

Output Voltage: 600 mV

Moisture Sensitive: Yes

Operating Pressure: 5 kPa to 40 kPa

Supply Voltage - Max: 3.5 V

Supply Voltage - Min: 2.8 V

Operating Supply Current: 5 mA

Operating Supply Voltage: 3.5 V

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: 0 C
