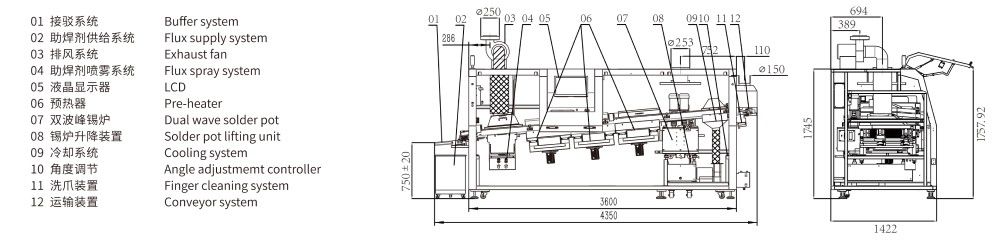

Dimension：LxWxH(mm)4350×1422×1750
Weigh:Approx.1600kg
Power Supply:3PH 380V 50HZ
Startup Power:33KW
Operation Power Consumption:8KW
Control System:PC+PLC
Spraying movement:Step motor
Spray Pressure:0.2Mpa~0.4Mpa
Flux Flow Arrange:option
Auto Fill Flux:Standards
Exhaust:Top exhaust
Exhaust Ducting Diameter(mm):Φ250
Exhaust fan power:750W
Preheating Mode:Convection / IR emitter
Control Mode;PID
Preheating Zone Number:3
Preheating Length(mm):1800
Preheating Temperature:Room temperature~200℃
Warm-upTime(min):Approx.12min (setting：150℃)
PCB Width(mm):50~350
Convoyor Direction:L→R (Option：R→L)
Conveyor Speed(mm/min):500~1800
Conveyor Height(mm):750±20
Available Component Heigh (mm):Top 120, Bottom15
Conveyor Speed Control Mode:Frequency converter closed-loop stepless speed regulation
Fingers:Spring tablet finger /D-40 duckbill finger/double hook finger/heavy double hook finger, choose one.
Conveyor Angle:4~7°
Type of solder Pot:Motor drive
Solder Pot Material:Casting Iron
Wave Height AdjustmentDigital: Control by PC
Cooling Method: Forced air cooling, Option: water cooler
Heater Power:13.5KW
Solder Pot Temperature:300°℃
Solder Pot Capacity:Approx.480KG
Wave Drive Power:180W*2 3PH 220VAC
Solder Pot Warm-up Time:Approx.150min(setting：250℃)
Temperature Control Mode:PID
Finger Cleaning System:Brush
