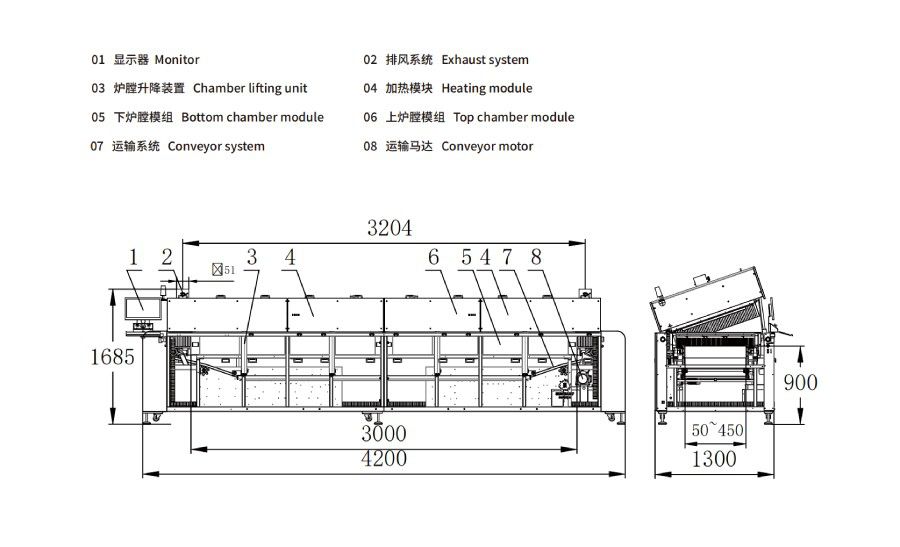

Dimension: L4200xW1300xH1685mm
Weight: Approx.1400kg
Power Supply: 3P 5L 380V 50/60Hz
Control system: PC+PLC
Total Power: Approx.32KW
Conveying Type: Stainless steel anti-jam chain
Guide fixed mode: Front end fixed
Conveying width: min 50mm - max 400mm
Product height (including fixture): max 95mm
Infeed height: 900±20mm
Conveying Speed: 100-500mm/min
Speed control mode: Closed Ioop stepless speed regulation by inverter
Conveying direction: L-R(Option：R-L)
Temperature control mode: PID
Temperature range: Room temp~200℃
Heating system: Heating on the channel
Heating zones: 5 heating zones
Heating zone length: 3000mm
Cooling zone length: N/A (Option)
Warming up time: Approx.15min (Set temp 150℃)
Running power: Approx.6kW
Temperature value display accuracy: 1℃
Abnormal alarm: Three-color signal light+human-machine interface alarm
Exhaust requirement: 2-Φ150 air outlet，the exhaust air volume of a single air outlet is about 15m³/min
Parameter storage: Process Data and status stotage
Power cut protection: Equipped with UPS
Air source: N/A
*1.Note：According to production capacity requirements， the recommended heating zone number is： 4 heating zones， 5 heating zones， 8 heating zones， 9 heating zones， 10 heating zones， 12 heating zones， which can be customized.
