Suneast SEMI-13N Semiconductor reflow oven (13 heating zones, 26 heating modules)

- Heating system:

Number Of Heating Zones: 13 heating zones, 26 heating modules

Length of heating zone: 4750mm

Heating up time: 25min

The diameter of the inlet and outlet exhaust pipe: 2-Φ145, Exhaust demand 10m³/min x2.

- Cooling system:

Cooling type: Three cooling zones: forced water cooling

Cooling zone length: 1250mm

Chiller power: 5P Water chiller (Optional: connected to customer workshop cooling water)

- Conveyor system

Conveyor Type: Fine mesh mesh belt (Optional: B-shaped mesh belt, force bone mesh belt)

Conveyer Direction: L→R,R→L

Converyer Height: 900±20mm

Mesh belt width: 24"" (Other width sizes can be customized.)

Cmponent Height: 20mm

Conveyor Speed: 300mm-2000mm/min

- Control system:

Power Supply: AC3Φ，5W,380V,50/60HZ

Total power: 118KW

Startup power: 42KW

Normal operating power: 14KW

Operating temperature range: Room temperature to 320℃

Control mode: PC+PLC control system

Width adjustment mode of track: Electric+manual

Temperature control accuracy: ±1℃

PCB temperature deviation: ±1.5℃

Setting parameter storage: Pr℃ess Data and status stotage

Power failure protection: Equipped with UPS

N2 area: Full nitrogen filling

Secs/Gemcommunication protocol: Standard

MES communication protocol: Standard

Operating interface: Windows Chinese simplified, English online free switching

Computer: Commercial computer

- Pecifications Parameters

Dimension(L*W*H): 7500*1710*1650mm

Weight: 3600-3800kg

Flux recovery system: Standard

Color Bright wrinkled white

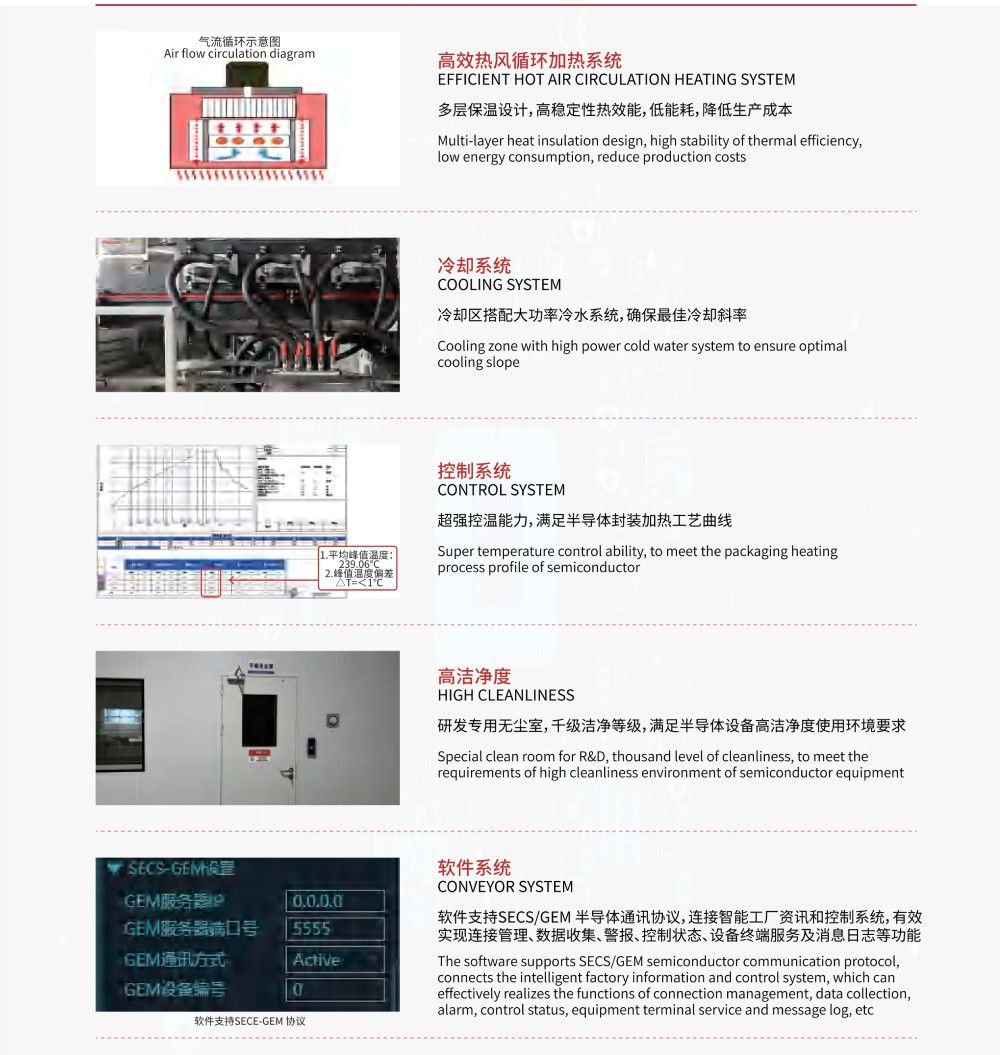

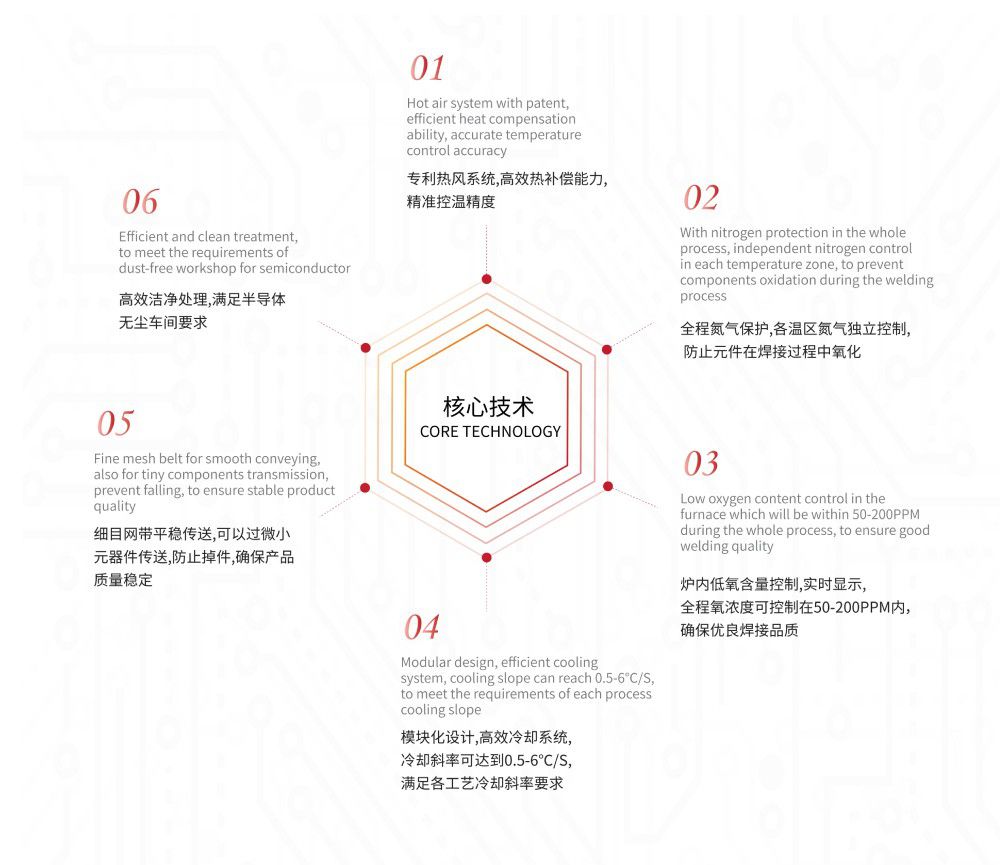

Features
