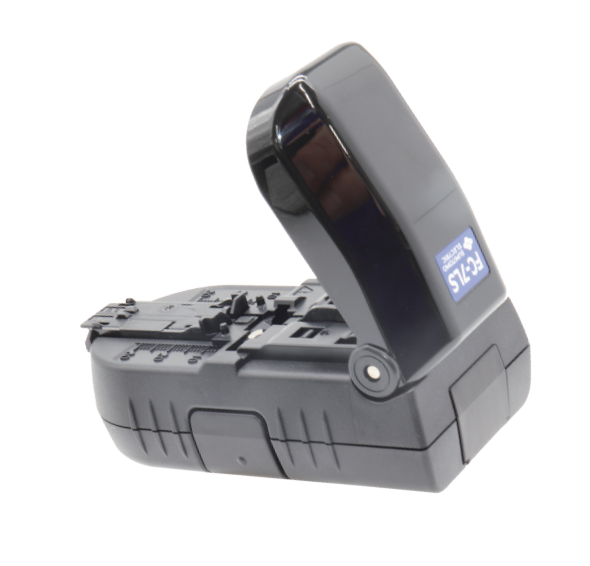

SUMITOMO FC-7LS Handheld fiber cleaver (48,000 fibres)

Applicable fibre

Material: Sillica glass

Cladding diameter: Φ 125 µm

Coating diameter: Ф 0.2,025, 0.9mm buffered fibre, 2 & 3mm jacketed cord

Cable type: Rectangular drop cable (2x3mm), 3.5mm round drop cable

Fibre count: Single fibre

Cleave length: 10mm-20mm

Fibre placing: Single fibre adapter AP-FC7LS

Cleave angle(Typ.): Average 0.3 to 0.9 degrees

Off-cut collector / Fibre offcut bin: Pre-fitted/TR-FC7LS

Dimensions and Weight: 51(W)x106(D)x83(H)mm, Approx.124 g

Field replaceable blade: FCP-20BL

Operating condition: -10-50°C and 0-95% RH(non-condensing)

Storage condition: -40-80°C and 0-95% RH(non-condensing)

Blade life: 48,000 fibres(2,000 fibres x24 positions)
