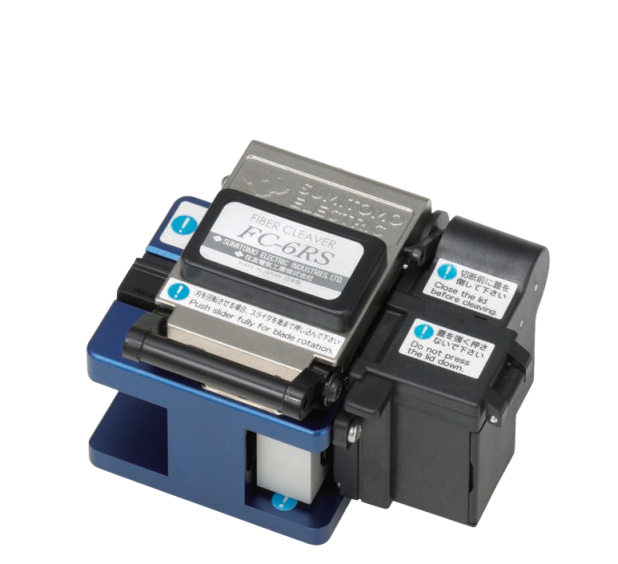

SUMITOMO FC-6R Benchtop fiber cleaver (single, 60000 fibers)

Applicable fibre

Material: Sillica glass

Cladding diameter: Φ 125 µm

Fiber count: Single

Cleave length: 5-20 mm (Ф 0.25)  /  10-20 mm (Ф 0.9)

Cleave angle (Typ.): 0.5 degrees with single fiber

Off-cut collector: Pre-fitted/CU-FC6

Single fiber adapter: Pre-fitted AP-FC6M

Automatic blade rotation

Dimensions: 100(W)x81(D)x63(H)mm

Weight: Approx. 420 g

Field replaceable blade: Yes, use FCP-20BL(7R)

Blade life: 60,000 fibers (2,500 fibers x 24 positions)

Datasheet
