Sujing Y09-310X Portable Electronic Air Particle Counter (0.3, 0.5, 1, 3, 5, 10 μm)

Outside Dim: 373*169.3*272mm3

Weight: 4.2kg

Max Power: 60W

Power Source: DC16.8V

Size Channels: 0.3, 0.5, 1, 3, 5, 10 μm

Sample Time: 1s-99h

Flow Rate: 28.3L/Min

Maximum Rated Particle Concentration : 35000 particles/L

Interface: USB

Zero Court: <=10min

Operating Time: 6 hours

Data Storage: 100000 Samples (Wifi)

Data Storage: 1000000samples

Audit Trail: Query ,Export

Three-Level Permissions: Role permissions can be assigned at the administrator level

Numbers of user: 1000

User management: Assign user,Modify user,Disable User, Enable user

Display screen: Touch color screen

Product Description

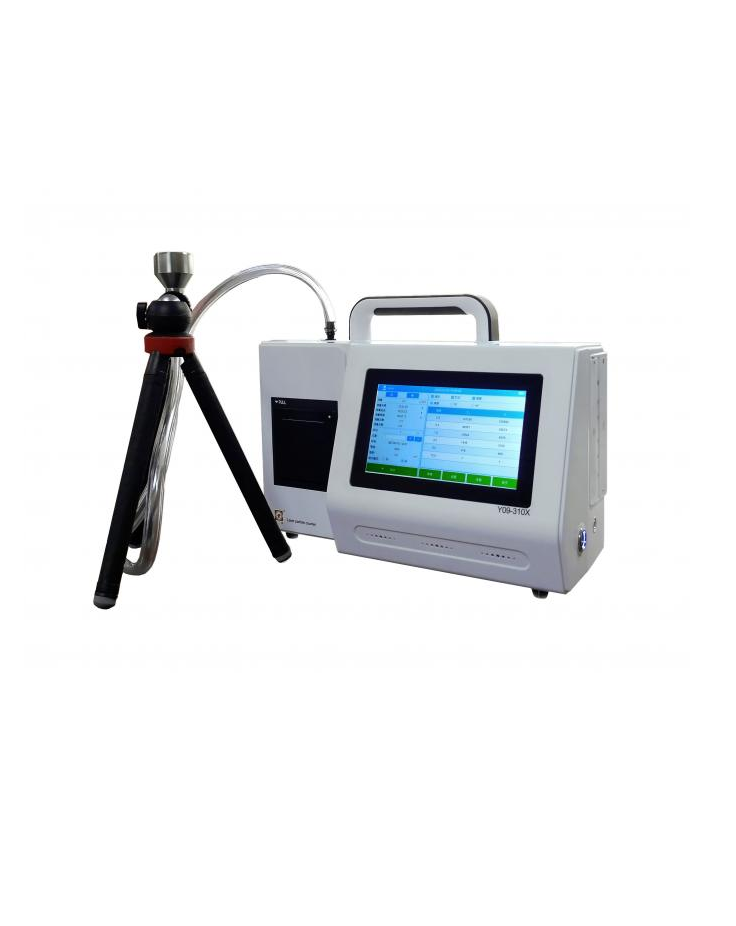

Y09-310X Air Particle Counter

The electronic particle counter is our newly develop portable laser dust particles counter which apply semiconductor laser sensor, can be connected to PC data collection system to remote control, so that can directly observe the testing situation, and the testing data can be analysis, processed and saved as Excel document. The counter apply American micro-computer controlling and dealing technology, semi-conductor technology and imported air pump, with the character of multi-function, high precision measure, high speed, portable and easy to operate. The counter one time sampling can test the number of dust particles on different kinds of grain sizes

Y09-310X Particle Counter (updated from Y09-310NW) is used to detect the size and quantity of particles in the air per unit volume of the clean environments. It can quickly check or validate ISO Class 5-9 clean rooms and controlled environments. With LCD display, the instrument uses laser diode as the light source. It has many features, such as slim design, light weight, high precision, simple operation, micro computer control, and can store and print sampling results. It is widely used in the electronics, optics, chemistry, food and beverage, pharmacy and sanitation, biology, precision machinery, aerospace, and other fields.
