Channel: 1
Waveform
Pulse: Single/Dobule, Logic Positive /Negative, Positive/Negative Polary
Edge Time: ≤10ns
Overshoot: ≤ 10%
Time
Pulse Period: 20ns ~ 10000s (frequency range: 0.1mHz ~ 50MHz)
Time Interval: 5ns ~ 10000s
Resolution: 5ns (Low range), 10μs (High range)
Interval Error: ± (T×5×10-5 + 5ns)(Low range), ±(T×5×10-5 + 10μs) (High range)
Amplitude Offset
Amplitude Range: 50mV ~ 10V (High Z)
Offset Range: 50mV ~ 10V (High Z)
Output Impedance: 50Ω
TTL
TTL/COMS Level: Low Level≤ 0.3V, High Level≥3.0V (high impedance load)
Output Impedance: 50Ω
Burst
Burst Count: 2 ~ 65000 cycles
Burst Mode: Continuous, Signle
EXT. STD Input
Frequency: 10M mutiple
Amplitude: 0.5-5Vpp, AC coupling
Trigger
Trigger Mode: Internal, External, Manual
Ext. Trigger Input: Frequency: 1Hz ~ 10MHz (Square), Amplitude: 1Vpp ~ 20 Vpp
Input Impedance: ≥100kΩ
General Characteristics
Power: AC110-240V, 50/60Hz,<80VA
Display: VFD
Optional Interface: USB, GPIB
Dimension & Weight: 254×103×384mm, Approx.3 kg
Standard Accessories
Power Cord: 1pcs
Testing cable: 1pcs
CD(Software+ User's Guide): 1pcs

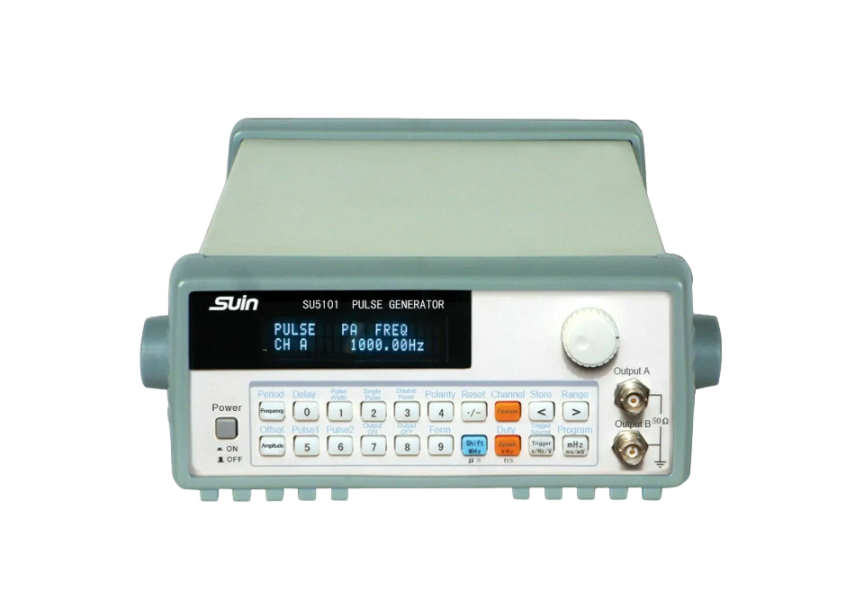

SU5000 Series Digital Pattern Generator Features
Direct Digital Synthesis Technology
Crystal Oscillation Reference
High Accurate Time and Frequency
Count burst or single burst both can be selected
Multiple output channels and EXT
Trigger/Frequency Standard Input channels
Data Storage and Recall
Optional GPIB and USB interface
