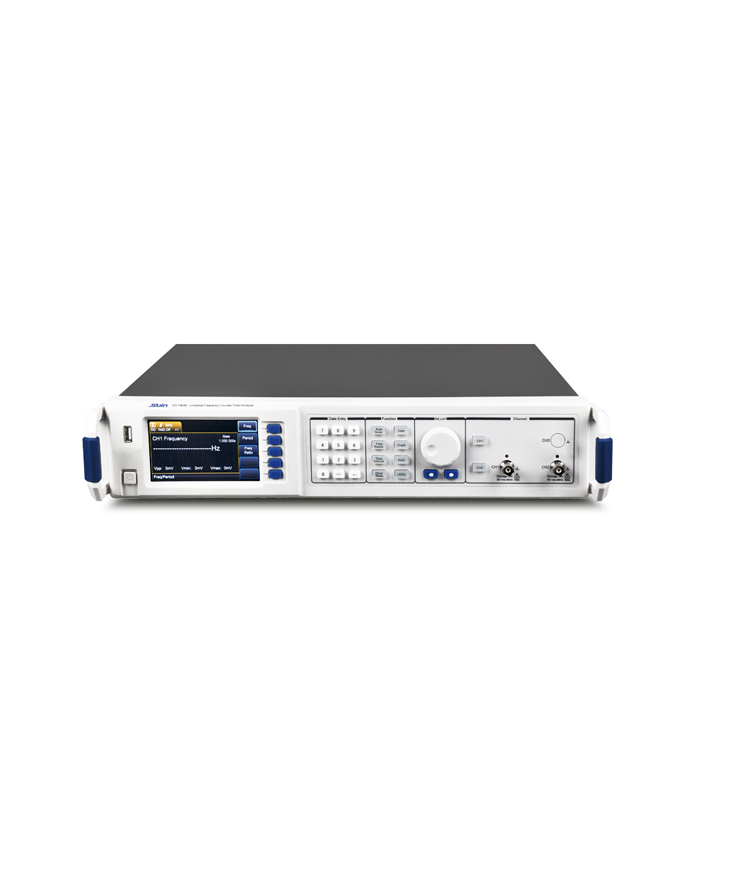

SUIN SS7406 Universal Frequency Counter/Timer/Analyzer (3CH, 40GHz, 11 digits)

Measuring Function

Frequency Range

Channel 1: 1mHz-200MHz

Channel 2: 1mHz-200MHz

Channel 3: option 3GHz/6.5GHz/12.4GHz/ 16GHz/20GHz/26.5GHz/40GHz

Measurement Resolution: 11 digits/s

Period: 5ns-1000s

Time Interval Range: 1ns-10000s

Time Resolution: 25ps

Pulse Width: 1ns-10000s

Duty Cycle: 1%-99%

Totalize: 0~1×10^13

Phase Difference: 1°~359°

Input

Dynamic Range: 50mVrms~1.0Vrms (Sine), 150mVpp~4.5Vpp (Pulse)

Input Impedance: 1MΩ//35pF or 50Ω

Coupling Mode: AC or DC

Input Attenuation: ×1 or ×10

Trigger Level: -5.000V~+5.000V, min.step 1mV or auto trigger level

Other Functions

Frequency Ratio: ratio value range: 0.00001~999999

Up/Low Limit: 'Limit' light on shows the result out of range, off shows within range

Statistics Calculation: Multi-average, Max, Min, PPM, SD, Allan Variance

Standard Time Base

Daily Aging: 1×10^-8/day

Yearly Aging: 5×10^-7/year

Optional Time Base

Daily Aging: 5×10^-10/day

Yearly Aging: 5×10^-8/year

General Characteristics

Interface: RS-232, GPIB, LAN

Power

Standard: AC220V (10%), 50Hz (5%), <70VA

Dimension & Weight: 454×97.5×480mm, 7.3Kg

Standard Accessories

Power Cord: 1pcs

BNC Testing cable: 1pcs

CD(Software+ User's Guide): 1pcs
