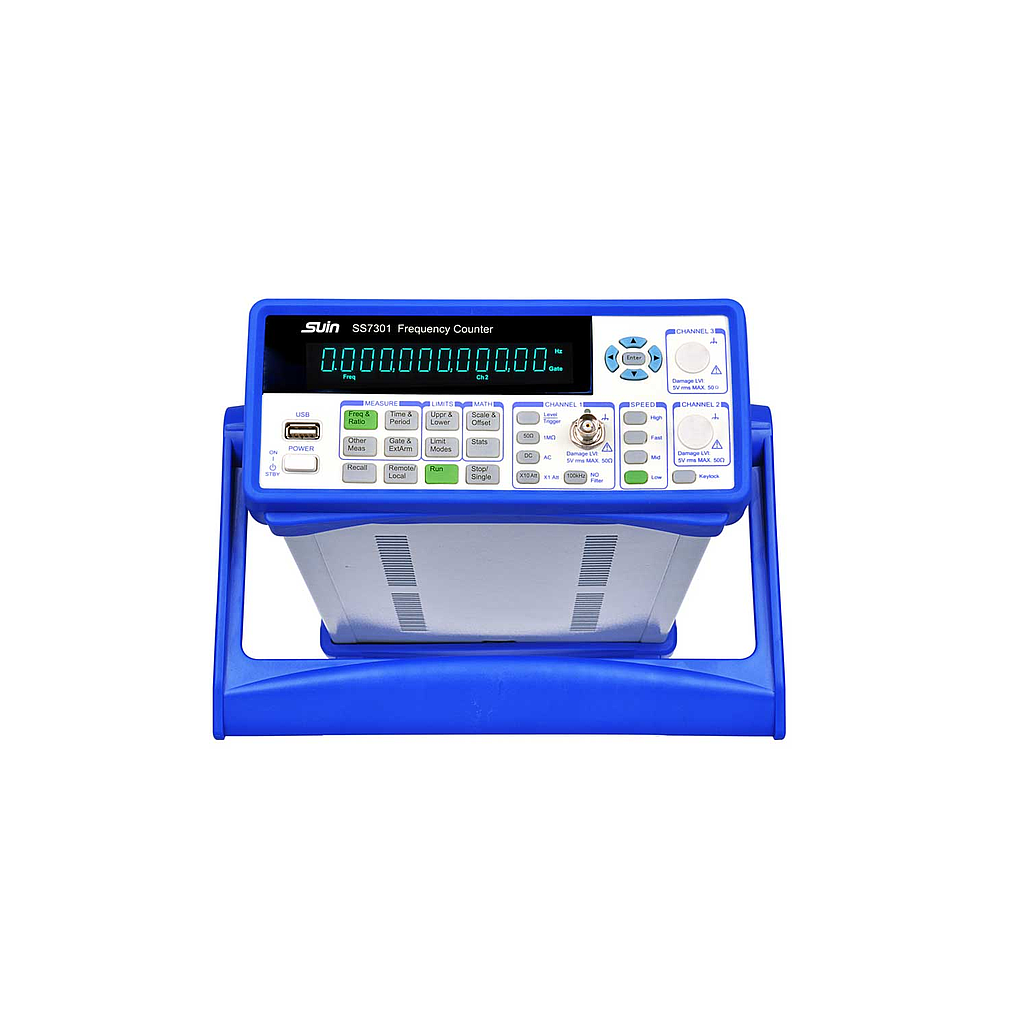

SUIN SS7301 Frequency Counter (3CH, 40GHz, 10 digits)

Measuring Function

Frequency Range

Channel 1: 0.001Hz ~ 200MHz

CH2: options 3GHz/6.5GHz/12.4GHz/ 16GHz/20GHz/26.5GHz/40GHz

CH 3: options 3GHz/6.5GHz/12.4GHz/ 16GHz/20GHz/26.5GHz/40GHz

Measurement Resolution: 10 digits/s

Period: 5ns-1000s

Pulse Width: 50ns-1000s

Duty Cycle: 5% ~ 95%

Totalize: 0~1×10^13

Input

Dynamic Range: 50mVrms~1.0Vrms (Sine), 150mVpp~4.5Vpp (Pulse)

Input Impedance: 1MΩ//35pF or 50Ω

Coupling Mode: AC or DC

Input Attenuation: ×1 or ×10

Trigger Level: -5.000V~+5.000V, step 5mV

Other Functions

Frequency Ratio: √

Frequency Self-tes: √

Up/Low Limit: 'Limit' light on shows the result out of range, off shows within range

Statistics Calculation: Multi-average, Max, Min, PPM, SD, Allan Variance

Standard Time Base

Accuracy: 5×10^-8

Daily Aging: 1×10^-8/day

Optional Time Base

Accuracy: 5×10^-8

Daily Aging: 5×10^-10/day

General Characteristics

Interface: RS-232, USB

Power: AC 220V(10%) or AC110V(10%), 50Hz(5%) OR 60Hz(5%)

Dimension & Weight: 375x105x235mm, 3.5Kg

Standard Accessories

Power Cord: 1pcs

BNC Testing cable: 1pcs

CD(Software+ User's Guide): 1pcs
