Direct access to our certified experts

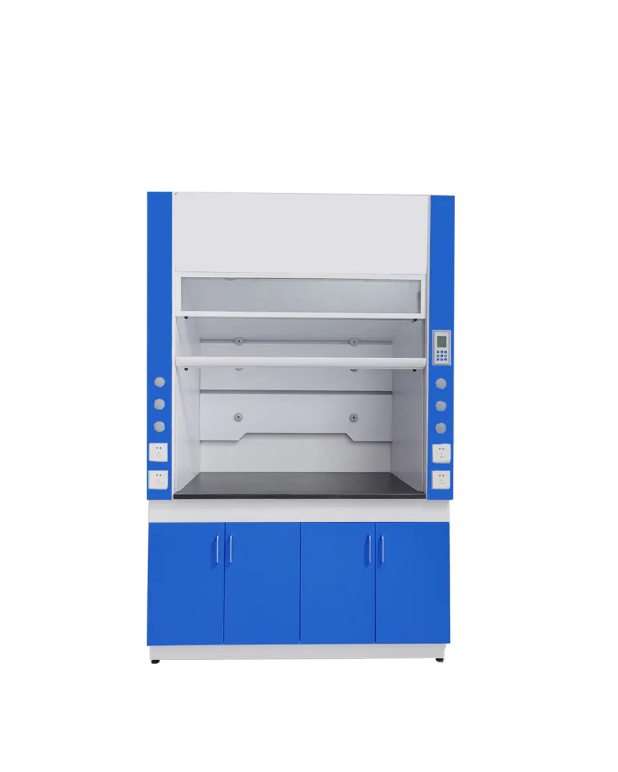

Working area size (W*D*H)(mm): 985*595*1185
Overall dimension (W*D*H) (mm): 1200*850*2350
Outer shell material: The outer casing is made of high-quality cold-rolled steel plate of 1.0mm thickness.
Inner shell material: 5mm gray high-pressure laminate which is a laboratory-specific material.
Operation surface material: It adopts 12.7mm solid phenolic resin plate countertop, acid and alkali resistant, chemical solvent corrosion, non-toxic and long service life.
Fluorescent lamp: The fluorescent lamp is hidden at the top and does not come into contact with the airflow in the fume hood for easy replacement.
Handle material: PVC handle
Deflector material: 5mm high-pressure laminate
Socket: multi-function splash-proof power socket
Front window material: pvc plastic profile frame, the window is made of 5mmtempered glass, using stepless balance device, can move up and down, freely adjustable.
Blower material: made of PP material, integrated, acid and alkali resistant, corrosion resistant.
Electric box : Meets 220V and 380V power requirements, and is equipped with motor protection device.
Control switch : LED display, centralized control of the entire circuit system.
Equipment's process Description:
All steel plates were soldered with epoxy resin powder and visually observed without solder joints.
All water, electricity and gas paths must be safe, suitable and concealed
Maintenance holes are provided on both sides of the cabinet for maintenance and safety inspection.
Lower cabinet material: 1.0mm high quality cold rolled steel plate (double layer), non-welded connection, removable
