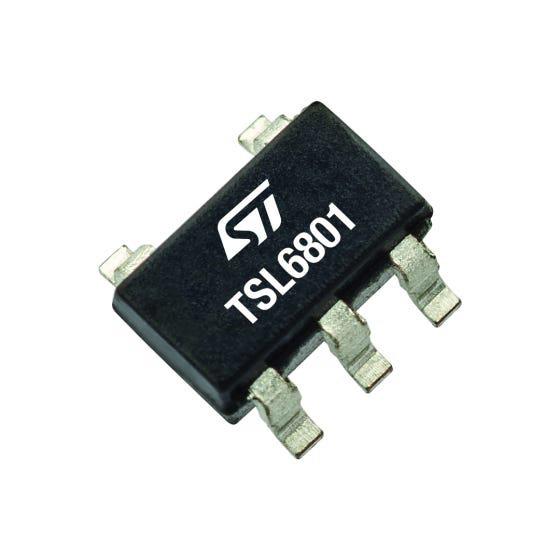

STMicroelectronics TSL6801ILT Operational Amplifiers Nanopower 600nA, rail-to-rail, 5V cost-effective Op amp

Shutdown: No Shutdown

Input Type: Rail-to-Rail

Output Type: Rail-to-Rail

Unit Weight: 16 mg

Mounting Style: SMD/SMT

SR - Slew Rate: 3 V/us

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.5 V

Ib - Input Bias Current: 1 pA

Operating Supply Current: 600 nA

Vos - Input Offset Voltage: 100 uV

GBP - Gain Bandwidth Product: 8 kHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 225 V/sqrt Hz

CMRR - Common Mode Rejection Ratio: 60 dB
