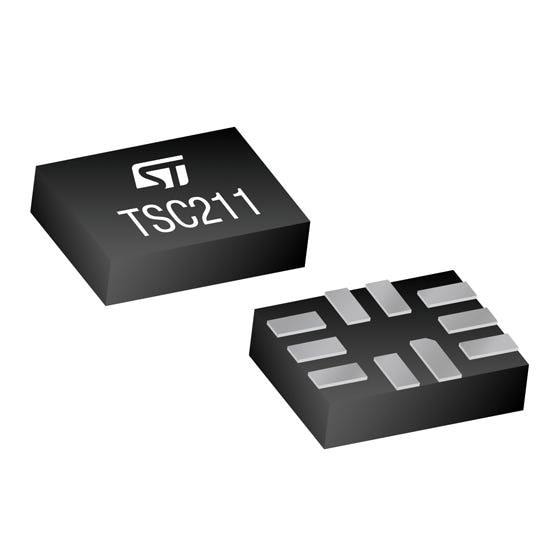

STMicroelectronics TSC211IYQT Current Sense Amplifiers Low / High side bidirectional, zero-drift, current sense amplifiers

Gain V/V: 500 V/V

Shutdown: No Shutdown

Gain Error: 1 %

Unit Weight: 4 mg

Qualification: AEC-Q100

Amplifier Type: Zero-Drift Current Sense Amplifier

Mounting Style: SMD/SMT

SR - Slew Rate: 0.075 V/us

Number of Channels: 1 Channel

Supply Voltage - Max: 26 V

Supply Voltage - Min: 2.7 V

Ib - Input Bias Current: 28 uA

Vcm - Common Mode Voltage: 26 V

Ios - Input Offset Current: 20 nA

Vos - Input Offset Voltage: 35 uV

GBP - Gain Bandwidth Product: 8 kHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 48 nV/sqrt

CMRR - Common Mode Rejection Ratio: 105 dB

PSRR - Power Supply Rejection Ratio: 0.1 uV/V
