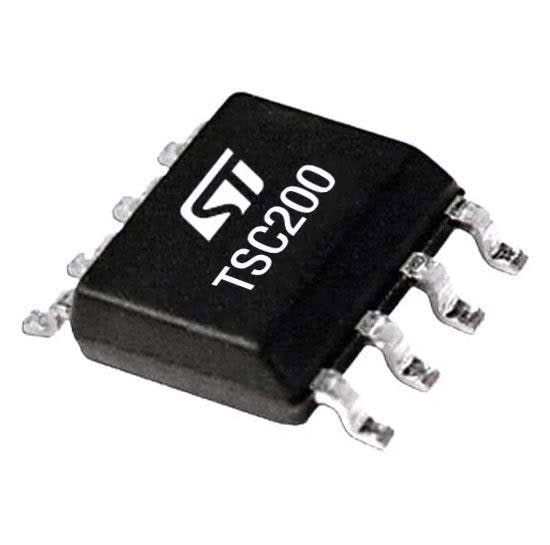

STMicroelectronics TSC200IYDT Amplifiers High voltage, current sense amplifier with open drain comparator and ref

Gain V/V: 20 V/V

Shutdown: No Shutdown

Gain Error: 0.05 %

Output Type: Open Drain

Qualification: AEC-Q100

Settling Time: 2 us

Mounting Style: SMD/SMT

SR - Slew Rate: 7 V/us

Number of Channels: 1 Channel

Supply Voltage - Max: 18 V

Supply Voltage - Min: 2.7 V

Ib - Input Bias Current: 16 uA

Operating Supply Current: 1.85 mA

Vcm - Common Mode Voltage: 80 V

Vos - Input Offset Voltage: 100 uV

GBP - Gain Bandwidth Product: 1 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 55 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 120 dB

PSRR - Power Supply Rejection Ratio: 100 uV/v
