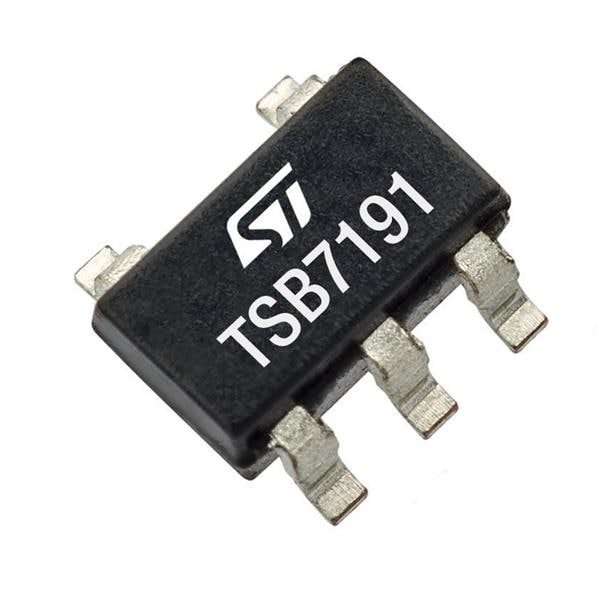

STMicroelectronics TSB7191ILT Precision Amplifiers Precision, 22 MHz, RR IO, 36 V BiCMOS operational amplifier

Shutdown: No Shutdown

Unit Weight: 16.380 mg

Mounting Style: SMD/SMT

SR - Slew Rate: 12 V/us

Number of Channels: 2 Channel

Supply Voltage - Max: 36 V

Supply Voltage - Min: 2.7 V

Ib - Input Bias Current: 300 nA

Operating Supply Current: 1.8 mA

Output Current per Channel: 50 mA

Vos - Input Offset Voltage: 300 uV

GBP - Gain Bandwidth Product: 22 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 20 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 100 dB
