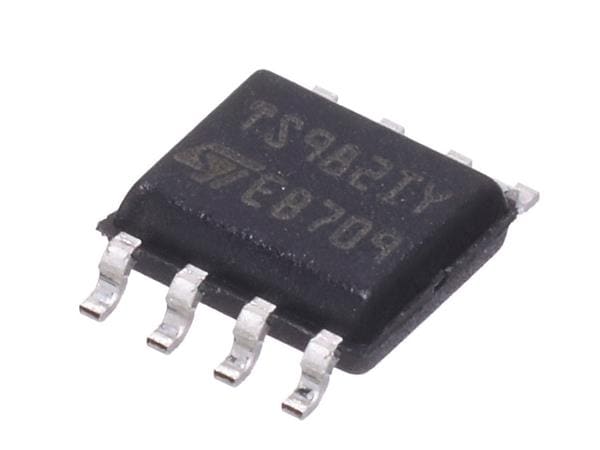

STMicroelectronics TS982IYDWT Operational Amplifiers High output current dual operational amplifier

Shutdown: No Shutdown

Unit Weight: 94.500 mg

Qualification: AEC-Q100

Mounting Style: SMD/SMT

SR - Slew Rate: 700 mV/us

Number of Channels: 2 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.5 V

Ib - Input Bias Current: 500 nA

Operating Supply Current: 7.2 mA

Output Current per Channel: 400 mA

Vos - Input Offset Voltage: 5 mV

GBP - Gain Bandwidth Product: 2.2 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 17 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 80 dB
