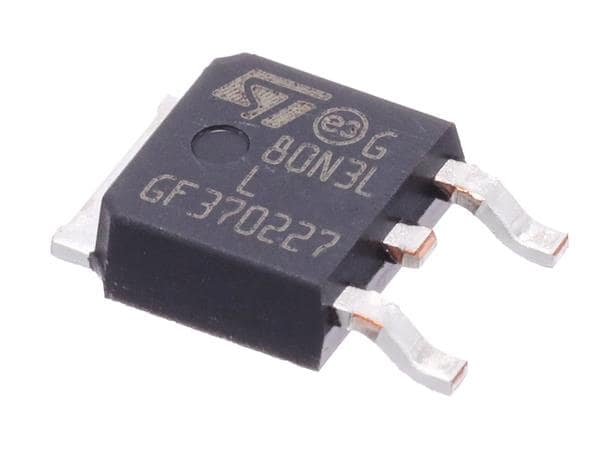

STMicroelectronics STD80N3LL MOSFETs N-channel 30 V, 2 mOhm typ 80 A, STripFET H6 Power MOSFET in DPAK package

Technology: Si

Channel Mode: Enhancement

Mounting Style: SMD/SMT

Qg - Gate Charge: 18 nC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 75 W

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Id - Continuous Drain Current: 80 A

Maximum Operating Temperature: + 175 C

Minimum Operating Temperature: - 55 C

Rds On - Drain-Source Resistance: 5.2 mOhms

Vds - Drain-Source Breakdown Voltage: 30 V

Vgs th - Gate-Source Threshold Voltage: 2.5 V
