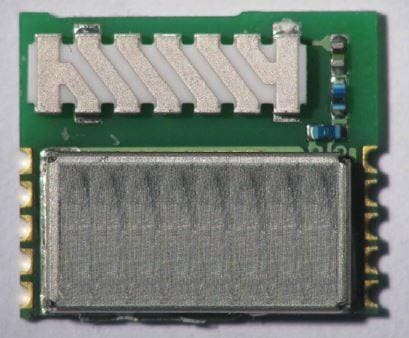

STMicroelectronics SPSGRF-915 Sub-GHz Modules Sub-GHz (868 or 915 MHz) low power programmable RF transceiver modules

Frequency: 915 MHz

Dimensions: 13.5 mm x 11.5 mm x 2 mm

Unit Weight: 594 mg

Output Power: 11.6 dBm

Interface Type: SPI

Protocol - Sub GHz: ISM

Description/Function: Low power programmable RF transceiver module

Supply Voltage - Max: 3.3 V

Supply Voltage - Min: 3.3 V

Antenna Connector Type: Integrated

Operating Supply Voltage: 3.3 V

Supply Current Receiving: 10 mA

Supply Current Transmitting: 22 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
