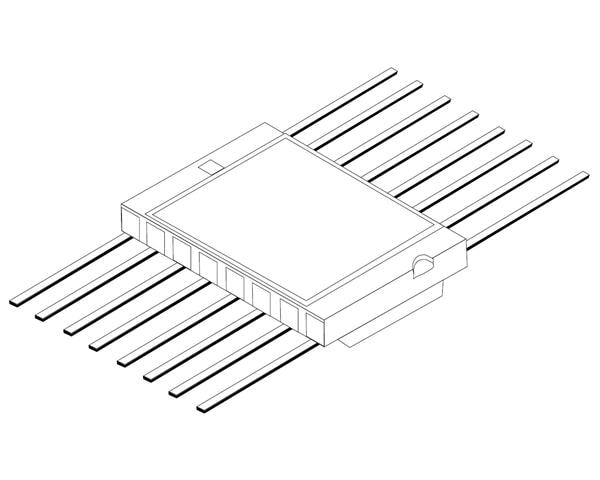

STMicroelectronics RHFL7913KPA1 LDO Voltage Regulators Rad-Hard 2.0A adjustable negative Vreg - Engineering Model

Polarity: Negative

Output Type: Adjustable

Mounting Style: SMD/SMT

Output Current: 2 A

Output Voltage: - 9.5 V to - 1.2 V

Dropout Voltage: - 450 mV

Line Regulation: 0.2 %

Load Regulation: 0.5 %

Number of Outputs: 1 Output

Input Voltage - Max: - 3.7 V

Input Voltage - Min: - 12 V

Pd - Power Dissipation: 15 W

Ib - Input Bias Current: - 6 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
