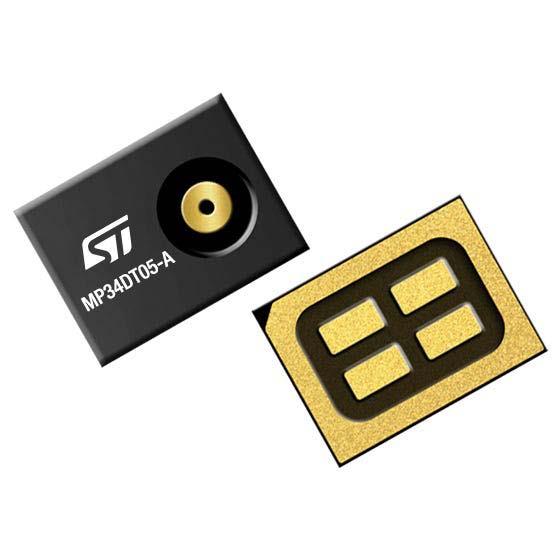

STMicroelectronics MP34DT05TR-A Adio Sensor Omnidirectional Digital Microphone MEMS audio sensor omnidirectional stereo digital microphone

Depth: 1 mm

Shape: Rectangular

Width: 4 mm

Length: 3 mm

Port Type: Top

Tolerance: 3 dB

Dimensions: 3 mm x 4 mm x 1 mm

Output Type: Digital

Sensitivity: - 26 dB

Unit Weight: 160 mg

Mounting Style: SMD/SMT

Frequency Range: 100 Hz to 10 kHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Sound Pressure Level: 122.5 dB

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.6 V

Directional Properties: Omnidirectional

Operating Supply Current: 650 uA

Operating Supply Voltage: 1.8 V

SNR - Signal to Noise Ratio: 64 dBA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
