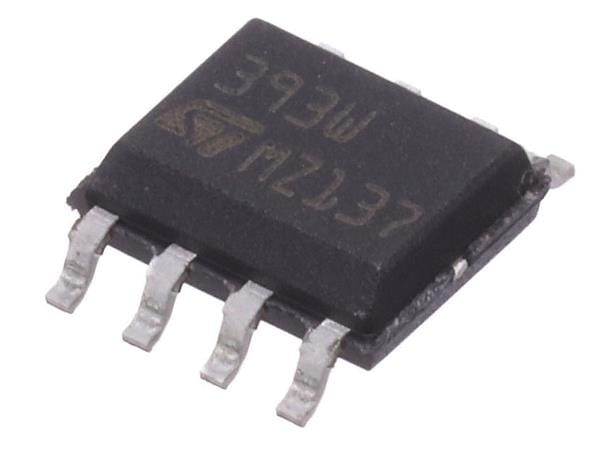

STMicroelectronics LM393WDT Analog Comparators Low power dual volt comparators

Shutdown: No Shutdown

Output Type: CMOS, DTL, ECL, MOS, TTL

Unit Weight: 540 mg

Response Time: 1.3 us

Mounting Style: SMD/SMT

Comparator Type: Differential

Number of Channels: 2 Channel

Supply Voltage - Max: 36 V

Supply Voltage - Min: 2 V

Pd - Power Dissipation: 830 mW

Ib - Input Bias Current: 250 nA

Operating Supply Current: 600 uA

Operating Supply Voltage: 3 V, 5 V

Output Current per Channel: 18 mA

Vos - Input Offset Voltage: 5 mV

Minimum Dual Supply Voltage: 1 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
