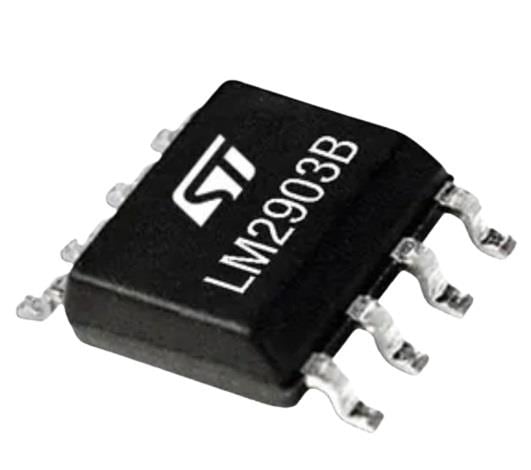

STMicroelectronics LM2903BYDT Analog Comparators Low power dual voltage comparator

Shutdown: No Shutdown

Input Type: Differential

Unit Weight: 80 mg

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Comparator Type: General Purpose

Number of Channels: 2 Channel

Supply Voltage - Max: 36 V

Supply Voltage - Min: 2 V

Ib - Input Bias Current: 20 nA

Operating Supply Current: 1 mA

Ios - Input Offset Current: 40 nA

Output Current per Channel: 4 mA

Vos - Input Offset Voltage: 5 mV

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
