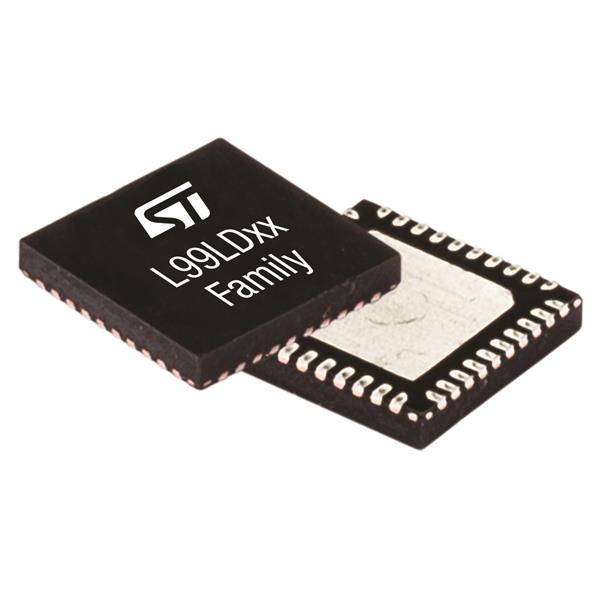

STMicroelectronics L99LD01TR-E Automotive LED Driver High efficiency constant current LED driver for automotive

Width: 7 mm

Height: 1.6 mm

Length: 7 mm

Features: Constant Current

Topology: Boost, Buck, Flyback

Output Type: Contant Current

Unit Weight: 774 mg

Input Voltage: 5.6 V to 24 V

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 50 mA

Output Voltage: Adjustable

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Input Voltage - Max: 24 V

Input Voltage - Min: 5.6 V

Operating Frequency: 100 kHz to 500 kHz

Supply Current - Max: 20 mA

Operating Supply Voltage: 5.6 V to 24 V

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
