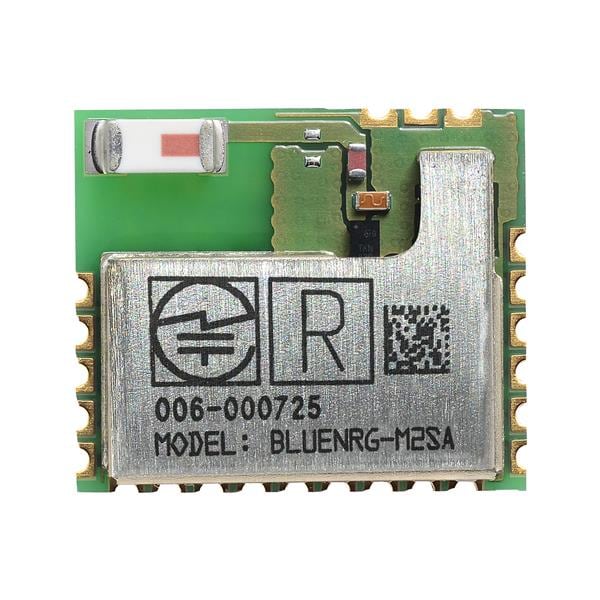

STMicroelectronics BLUENRG-M2SA Bluetooth Modules Very low power application processor module for Bluetooth low energy v5.2

Width: 11.5 mm

Height: 2 mm

Length: 13.5 mm

Protocol: BLE, Bluetooth 5.2

Frequency: 2.44 GHz

Unit Weight: 620 mg

Output Power: 8 dBm

Interface Type: I2C, SPI, UART

Frequency Range: 2.402 GHz to 2.48 GHz

Moisture Sensitive: Yes

Receiver Sensitivity: - 88 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.7 V

Operating Supply Voltage: 1.7 V to 3.6 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
