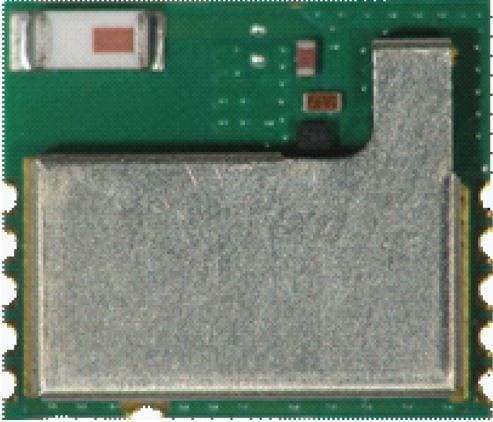

STMicroelectronics BLUENRG-M0A Bluetooth Modules Very low power network processor module for Bluetooth® low energy v4.2
ModelBLUENRG-M0A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Protocol: BLE, Bluetooth 4.2
Frequency: 2.402 GHz to 2.48 GHz
Dimensions: 13.5 mm x 11.5 mm x 2.1 mm
Unit Weight: 620 mg
Output Power: 6 dBm
Interface Type: SPI
Moisture Sensitive: Yes
Receiver Sensitivity: - 88 dBm
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.7 V
Antenna Connector Type: Chip
Operating Supply Voltage: 1.7 V to 3.6 V
Supply Current Receiving: 9.36 mA
Supply Current Transmitting: 16.5 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
