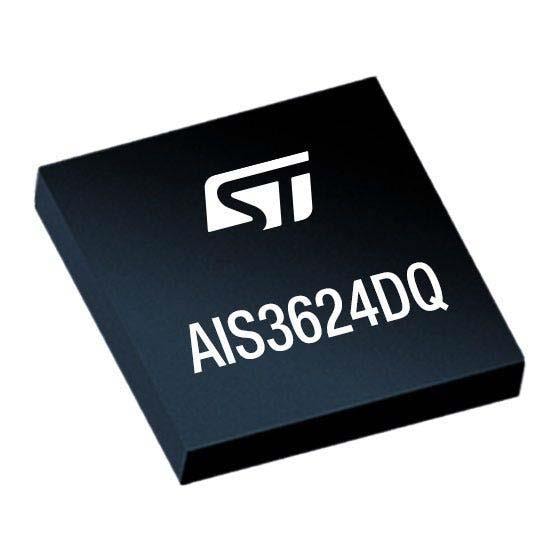

STMicroelectronics AIS3624DQTR Automotive Motion Sensor 3-axis accelerometer for non-safety automotive, ultra low power, SPI/I2C digital

Width: 4 mm

Height: 1.8 mm

Length: 4 mm

Resolution: 12 bit

Output Type: Digital

Sensitivity: 11.7 mg/digit

Sensor Type: 3-axis

Unit Weight: 40 mg

Acceleration: 6 g, 12 g, 24 g

Sensing Axis: X, Y, Z

Qualification: AEC-Q100

Interface Type: I2C, SPI

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.4 V

Operating Supply Current: 250 uA

Operating Supply Voltage: 3.3 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
