Color: Silver
Pitch: 2.54 mm
Gender: Jack (Female)
Shielding: Shielded

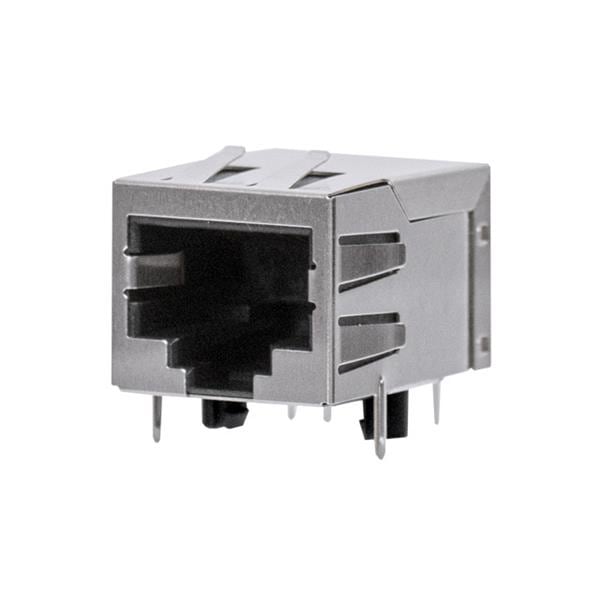

USOC Codes: RJ45
Configuration: 1x1
Mating Cycles: 750 Cycle
Tab Direction: Tab Down
Current Rating: 1.5 A
Mounting Angle: Right Angle
Mounting Style: Through Hole
Voltage Rating: 150 VAC
Contact Plating: Gold
Number of Ports: 1 Port
Termination Style: Solder
Mounting Direction: Horizontal
Number of Contacts: 8 Contact
Dielectric Strength: 1.5 kV
Flammability Rating: UL94 V-0
Number of Positions: 8 Position
Insulation Resistance: 1 GOhms
Operating Temperature Range: - 40 C to + 85 C
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Number of Positions / Contacts per Port: 8P8C
