Sterling ITI RSJUB6JXS01M0AP7-ITI Direct Mount Pipe Clip Sensor Pt100 & Pt1000 (-50 ~ 250°C)

Type: Pt100 or Pt1000 Class A

Temp Range: -50 - 250 °C

Material: Stainless Steel

To suit pipe diameters: 13-20mm, 20-30mm, 30-50mm, 50-100mm, 150 – 300mm

Lead Material: 7/0.2mm PFA

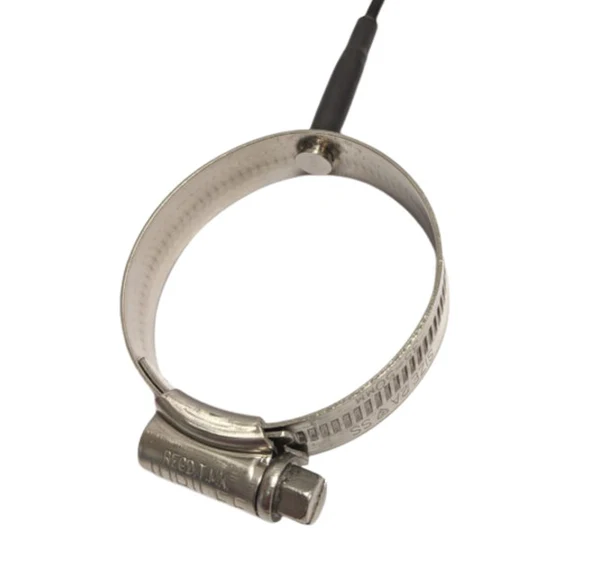

Jubilee style adjustable pipe clip resistance temperature detector used in the temperature measurement of pipes.

This range of RTD’s is designed to maximise contact with pipes for direct and permanent temperature measurement. They can be easily installed and replaced and are available in various sizes to suit a range of pipe diameters.

Supplied with a Pt100 or Pt1000 element in a 4-wire configuration enclosed within a stainless steel sheath, it has a 7/0.2mm diameter stranded, PFA insulated extension cable with 50mm tails.
