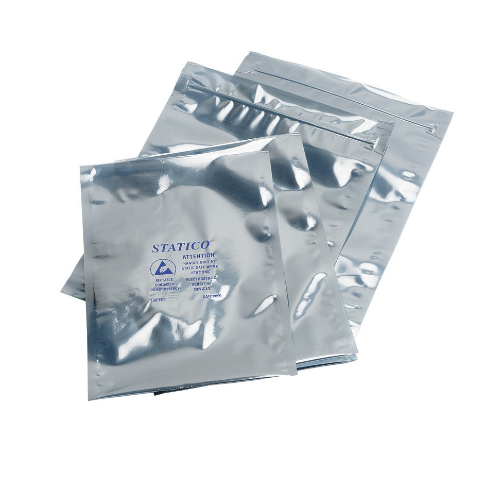

Statico S1800 Static Shielding Bags

Thickness (ASTM-D2103): 3.1 mils (80 microns)

Tensile Strength (ASTM-D882): >15 lbs./in

Puncture Strength (FTMS 10001-C, Method 2065): >12 lbs.

Heat Seal Strength (ASTM D882, 325º F, 0.75 sec, 60 psi): >12 lbs./in

Light Transmission: >40%

Surface resistivity (ASTM D257)(EIA 541, 12% RH)

+ Inner Layer: <10E12Ohms/sq. (10E10Ave.)

+ Conductive Metal Layer: 10E2 ohms/sq.

+ Exterior Layer: 10E12ohms/sq.(10E10 Ave.)

Static Decay (EIA-541): 0.05 Seconds

Capacitance probe (EIA-541) to dissipate 1 KV: <10 Volts,

Differential EMI Shielding (Mil-B-81705C): <10dB, 1 to 10 GHZ

Charge Generation

+ Teflon: -0.03 NC/in2

+ Quartz: +0.1 NC/in2
