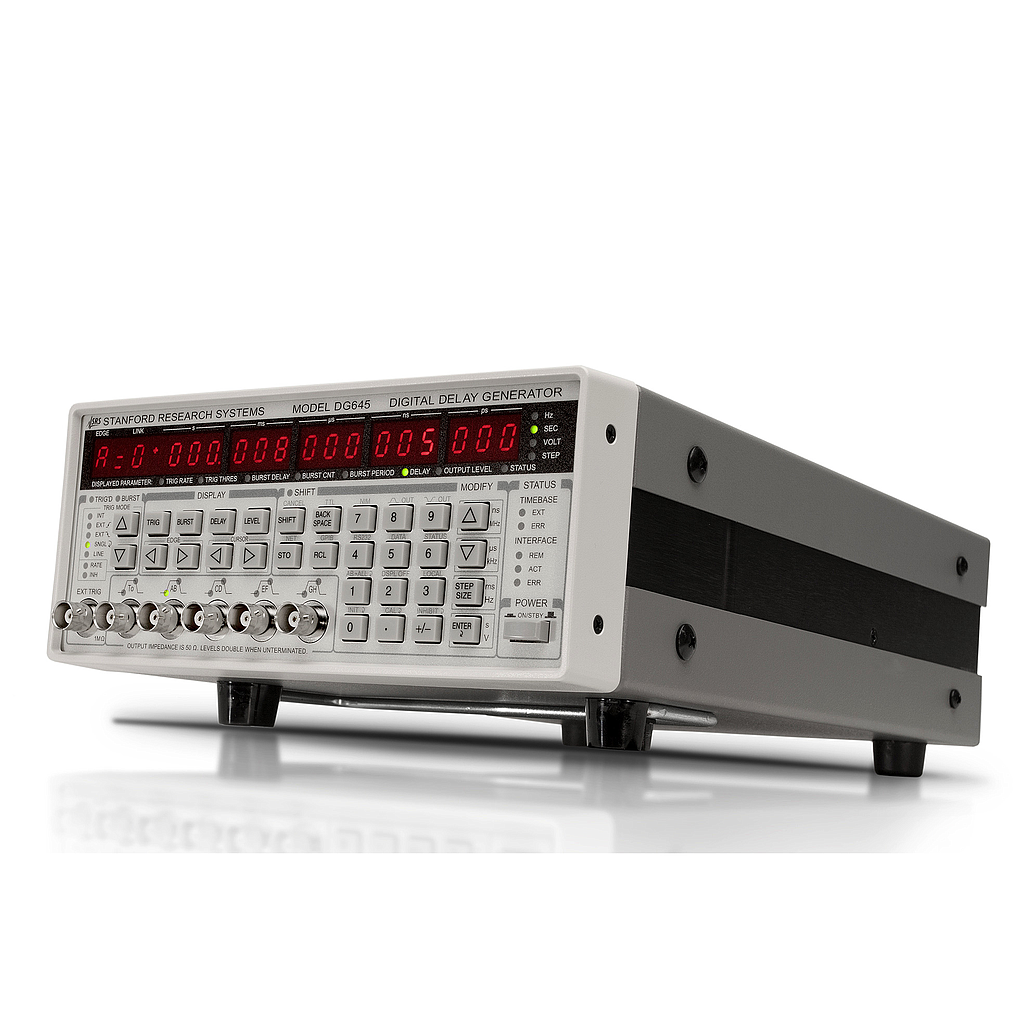

Delays:
Channels: 4 independent pulses controlled in position and width. 8 delay channels available as an option.
Range: 0 to 2000 seconds
Resolution: 5 ps
Accuracy: 1 ns + (timebase error × delay)
Jitter (rms):
Ext. trig. to any output: 25 ps + (timebase jitter × delay)
T0 to any output: 15 ps + (timebase jitter × delay)
Trigger delay: 85 ns (ext. trigger to T0 output)
Timebases:
Standard crystal:
Jitter: 10-8 s/s
Stability: 2 x 10-6 (20 °C to 30 °C)
Aging: 5 ppm/yr
Opt. 4 OCXO:
Jitter: 10-11 s/s
Stability: 2 x 10-9 (20 °C to 30 °C)
Aging: 0.2 ppm/yr
Opt. 5 Rubidium:
Jitter: 10-11 s/s
Stability: 2 x 10-10 (20 °C to 30 °C)
Aging: 0.0005 ppm/yr
External input:
10 MHz ± 10 ppm, sine >0.5 Vpp,
1 kΩ impedance
Output: 10 MHz, 2 Vpp ine into 50 Ω
External Trigger:
Rate: DC to 1/(100 ns + longest delay). Maximum of 10 MHz
Threshold: ±3.50 VDC
Slope: Trigger on rising or falling edge
Impedance: 1 MΩ + 15 pF
Internal Rate Generator:
Trigger modes: Continuous, line or single shot
Rate: 100 µHz to 10 MHz
Resolution: 1 µHz
Accuracy: Same as timebase
Jitter (rms):
<25 ps (10 MHz/N trigger rate)
<100 ps (other trigger rates)
Burst Generator:
Trigger to first T0:
Range: 0 to 2000 s
Resolution: 5 ps
Period between pulses:
Range: 100 ns to 42.9 s
Resolution: 10 ns
Outputs (T0, AB, CD, EF and GH):
Source impedance: 50 Ω
Transition time: <2 ns
Overshoot: <100 mV + 10 % of pulse amplitude
Offset: ±2 V
Amplitude: 0.5 to 5.0 V (level + offset <6.0 V)
Accuracy: 100 mV + 5 % of pulse amplitude
General:
Computer interfaces: GPIB (IEEE-488.2), RS-232 and Ethernet. All instrument functions can be controlled through the interfaces.
Non-volatile memory: Nine sets of instrument configurations can be stored and recalled.
Power: <100 W, 90 to 264 VAC, 47 Hz to 63 Hz
Dimensions: 8.5" × 3.5" × 13" (WHL)
Weight: 9 lbs.
