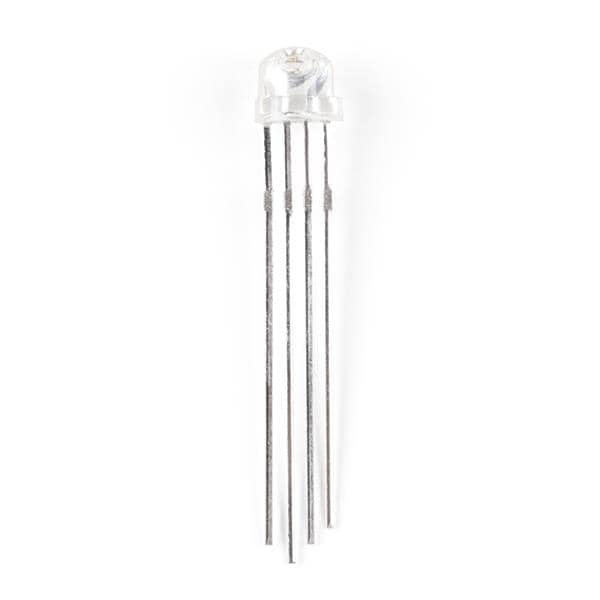

SparkFun COM-16911 Multi-Color LEDs RGB LED Clear Lens Common Cathode (5mm)

Width: 5.85 mm

Height: 4.8 mm

Length: 5.85 mm

LED Size: 5.85 mm x 4.8 mm

Lens Color: Colorless

Lens Shape: Dome

Power Rating: 100 mW

Configuration: Common Cathode

Viewing Angle: 10 deg

Mounting Style: Through Hole

Lens Dimensions: 5 mm

Lens Transparency: Water Clear

Illumination Color: RGB

Luminous Intensity: 700 mcd, 1200 mcd, 1400 mcd

If - Forward Current: 20 mA

Vf - Forward Voltage: 2 V, 3.1 V, 3.2 V

Wavelength/Color Temperature: 623 nm, 517 nm, 468 nm

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 25 C
