Pipe
Fluid condition: Steam (saturated)
Applicable pipe diameter: New・・・50A ～ 400A(*1,3)
Compatible・・・50A ～ 200A(*1,2)
Spool piece: Pipe diameter・・・50A ～ 400A(*1, 3)
Flange・・・JIS10k(*4)
Material・・・SGP, STPG, SUS304, SUS316, STPY
Sensor socket: JIS 10k 40A FF (spool piece installed type)
JIS 10k 40A FF (compatible socket screw type)
Installation requirement: Upper stream side 15D,
Lower stream side : 5D or more
(D is inner diameter)
*1: Consult sales representative if you have any questions.
*2: Applicable pipe diameter if you use a compatible socket.
*3: Applicable pipe diameter if you manufacture a new spool piece.
*4: Consult sales representative if used any flanges other than JIS10k
Sensor probe
Sensor probe: Applicable temperature・・・ Saturated steam of less than 183.3 ℃
Applicable pressure・・・ 1MPa
Seal: Protect pipe・・・ Combine with FTR-70
Cable: Distance from sensor probe to convertor, 6m or 10m(standard)
Compatible socket: In case of existing spool piece

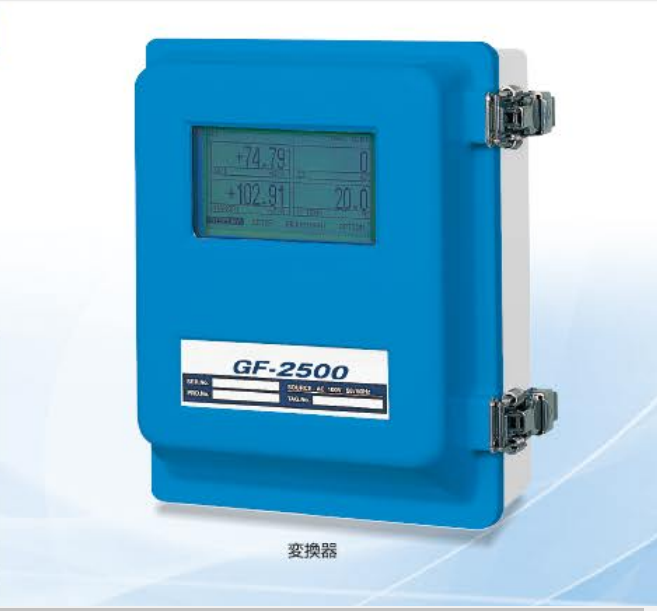

Convertor
General
Measurement method: Ultrasonic transit time method
Measurement accuracy : +/- 1.0%FS(FS flow speed 5 ～ 60m/s)
Reproducibility: +/-0.2%
Resolution of flow speed: less than 0.5mm/sec
Average time : standard 10sec (0.5 ～ 180sec)
Power supply
Power supply: AC100V +/-10%, 50/60 Hz
Power dissipation: Max. 25W
Output
Analog output (2 lines): DC4 ～ 20mA Load resistance : less than 1000Ω
Pulse output (4 lines): Open collector standard 30V, 0.25V
Power supply for pressure sensor: DC24V 0.2A
Digital output: RS422, RS232C
Input
Pressure sensor: DC4 ～ 20mA
Display
LCD: 128 x 240 dots LED back righ
