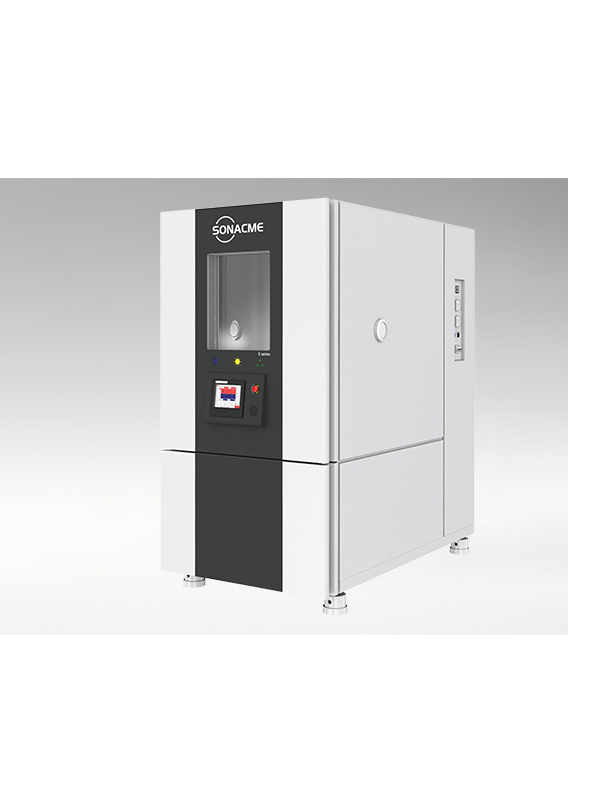

Sonacme ST-408-70H Temperature Humidity Test Chamber (-70℃ ~ +150℃, 10% ~ 98%RH, 408L)

Testing room (volume) :408L

Internal dimension:800 x 600 x 850mm(W x D x H）

External dimension:1000 x 1600 x 1900mm（W x D x H）

Temperature range: -70℃～ +150℃

Heating rate: 3.0℃/min (Average and no load)

Cooling rate: 2℃/min (Average and no load)

Temperature fluctuation: ±0.5℃

Temperature uniformity: ≤ 2.0℃

Humidity range: 10%~98%RH

Humidity fluctuation: ±2.5% RH

Structural:

Inner chamber: Using 1.2mm thick stainless steel plate (SUS304), fully seamless welding.

External chamber: Using 1.5mm thick cold-rolled steel plate, pickling and phosphating high-grade powder paint.

Lead Hole Size/Qty: ∅ 100mm*2 (One on the left side, and one on the right.)

Sample shelves: As standard, 2 pieces sample shelves will provide ( Load-bearing 30kg/pcs )

Chamber with 4 high load-bearing casters and second panel socket

Diameter of water pipe: inlet ø8 rigid tube +outlet DN10 hose +drain port DN10 hose (customer prepare)

Refrigeration system:

Cascade cooling system Air-cooled

Refrigerant: R404A&R23

Electrical system:

Power: 380V 50HZ 3Phase

Machine power: About 18KW, 35.1A (Includes the sockets)

Control system:

7-Inch Color Touchscreen Programmable

Controller

Controller languages: Chinese, English, Russian

Usable program capacity: Maximum 239 groups, a total of 23900 segments

Support remote control and simultaneous control of multiple machines.

Communications: RS-485 (Strandard)、 RS- 232( Optional)、 Ethernet (Standard)
