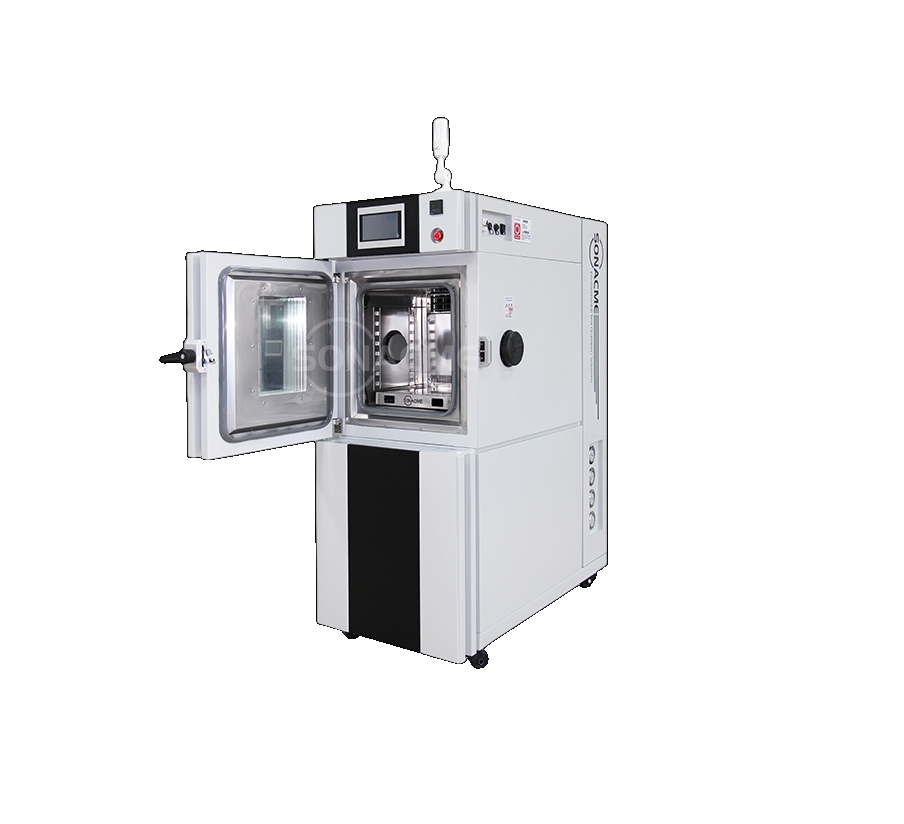

Sonacme ST/180/70(H) Temperature Humidity Test Chamber (180L;  -70~+100℃)

Capacity: 180L

Internal dimensions W×H×Dmm: 580*750*450

Extemal dimensions W×H×Dmm: 800*1800*1570

Weight: 520kg

Test area load-bearing capacity: 30KG

Temperature & Humidity Range: -70～＋100℃ (+150℃/+180℃) / 10～98%rh

Temperature & Humidity Fluctuations: ±0.3°C / ±2.5%rh

Temperature uniformity: 1.5°C

Temperature change rate: Heating rate：3.0°C/min Cooling rate：2.0°C/min

Appearance material: Using 1.5mm thick FC advanced electrolytic plate + spray anti-corrosion

Test area material: 1.2mm thick SUS304 stainless steel

Seasonal differences, different climate zones-your products must be able to withstand various temperatures during manufacturing, transportation, storage and use. The Temperature Humidity Test Chamber of Sonacme Technology will help you to test the effects of temperature and humidity on the characteristics, functions and service life of your products under accelerated conditions.

The Sonacme environmental test chambers and constant temperature and humidity test chamber with a wide range of applications allow you to control the temperature and humidity in the test chamber, ranging from -70°C to +180°C (temperature) and from 10% to 98% (relative humidity).
