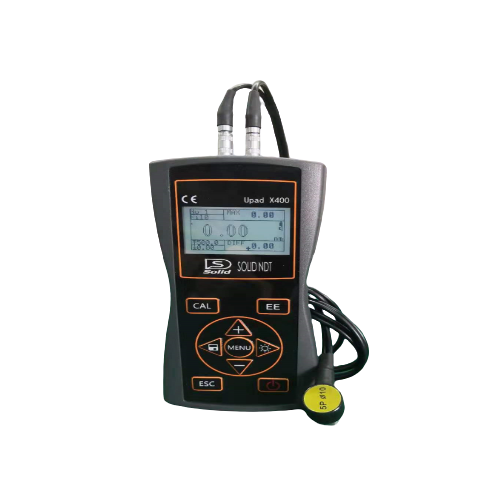

SOLID NDT UPAD X400 Ultrasonic thickness gauge (0.75~500mm)

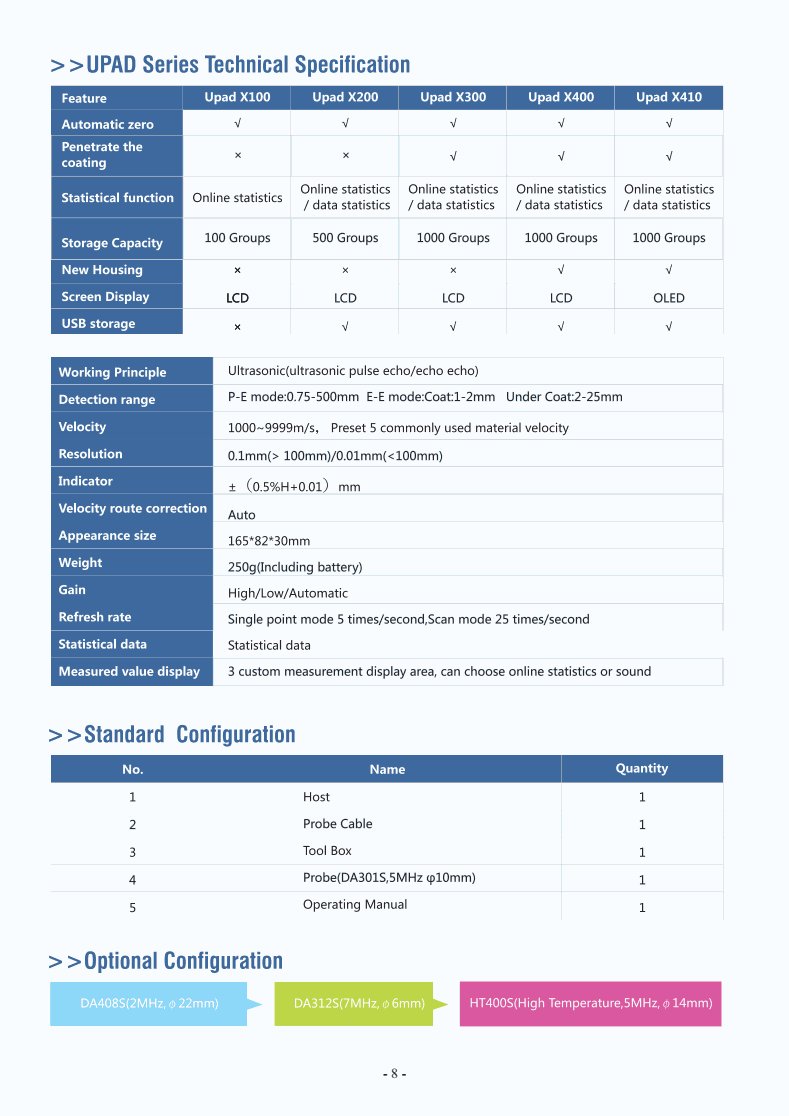

Gauge Type: Upad X400

Automatic zero: Yes

Penetrate the coating: Yes

Statistical function: Online statistics/ data statistics

Storage Capacity: 1000 Groups

New Housing: Yes

Screen Display: LCD

USB storage: Yes

Working Principle: Ultrasonic(ultrasonic pulse echo/echo echo)

Detection range:

+ P-E mode: 0.75~500mm

+ E-E mode: Coat: 1~2mm; Under Coat: 2~25mm

Velocity: 1000~9999m/s, Preset 5 commonly used material velocity

Resolution: 0.1mm(> 100mm)/0.01mm(<100mm)

Indicator: ± (0.5%H+0.01) mm

Velocity route correction: Auto

Appearance size: 165*82*30mm

Weight: 250g(Including battery)

Gain: High/Low/Automatic

Refresh rate: Single point mode 5 times/second,Scan mode 25 times/second

Statistical data: Statistical data

Measured value display: 3 custom measurement display area, can choose online statistics or sound

Standard: Host, Probe Cable, Tool Box, Probe(DA301S, 5MHz Ø10mm), Operating manual

Optional: Probe DA408S(2MHz, Ø22mm), DA312S(7MHz, Ø6mm), HT100S(High Temperature, 5MHz, Ø14mm)
