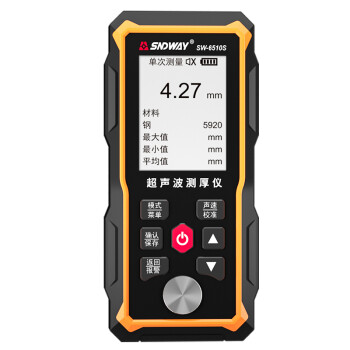

SNDWAY SW-6510S ULTRASONIC THICKNESS METER (1.00 - 300.00 mm)

Display: 2.4 " 96*128 LCD

Measuring Range: 1.00 - 300.00 mm (the steel)

Sound Velocity:1000 - 9999 m/s

Resolution:0.1mm/0.01mm/0.01in

Accuracy:

-H<10mm, +0.1mm,

-H110mm, +(1%H+0.1)mm;

-H is the thickness of the object

Standard Thickness of The Block: 4mm

Probe:5MHz g10mm

Memory: 300 sets

Memory Contents:terial, Velocity of Sound, Unit, Measuring Value, the MAX value, the MIN value and Average Value

Main functions:Single Measurement, Continues Measurement, Alarm Measurement, Sound Velocity Measurement, Calibration

Power Supply: 3.7V 2000mAh Li-ion

Charging Specification: DC 5V/1A Type-C

Working Temperature: 0°C - 40°C

Storage Temperature & Humidity: -10 C -50 C ,10%“70%RH

Demension: 140*66*28.5 mm
