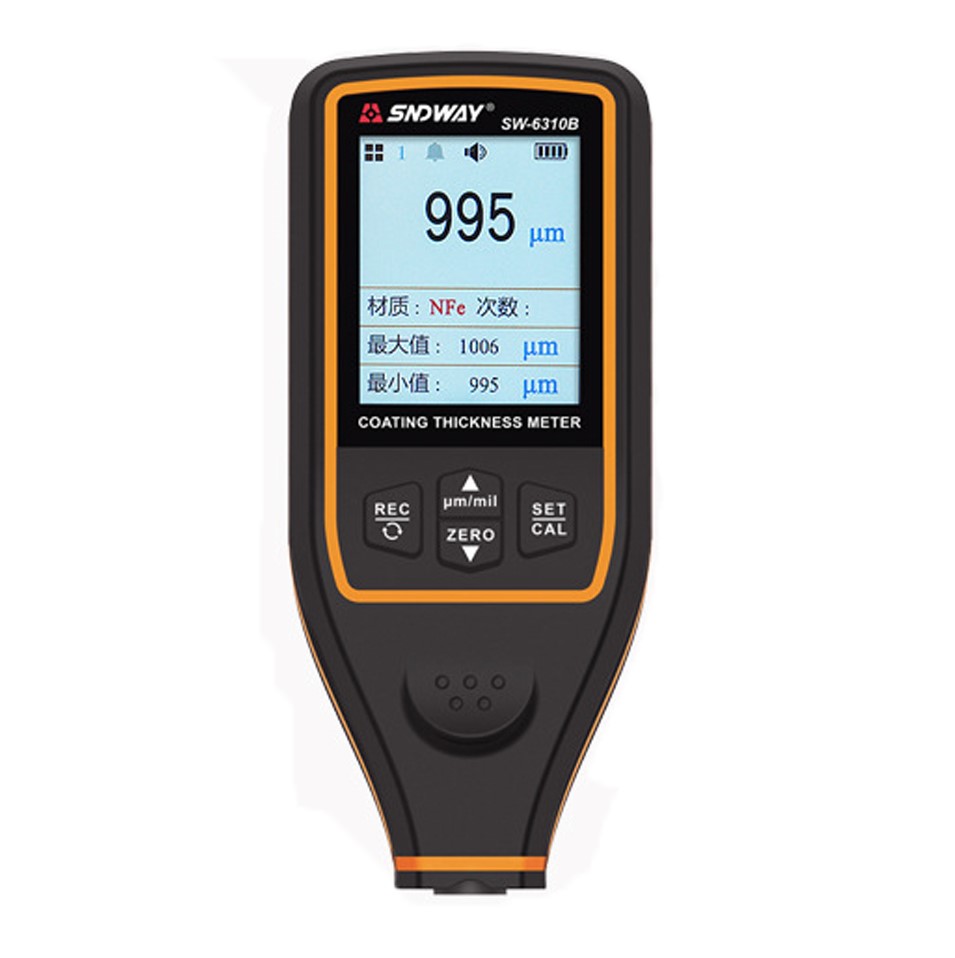

SNDWAY SW-6310B Coating Thickness Meter

Display Screen: 2.0" 240x320 TFT LCD

Measuring Range: Magnetic: 0-1700µm ; Non magnetic: 0-1700µm

Resolution: 0.1µm @ (0-99.9µm); 1µm @ (100-1700µm)

Indication Error: ±(2+2%*H)µm @ (0-500µm); ±(2.5%*H)µm @ (500-1700µm)

MIN. Measuring Area: Magnetic: 25x25mm; Non magnetic: 25x25mm

MIN. Curvature: Convexity: Smm; Concavity: 30mm

MIN. Thickness of Substrate: Magnetc: 0.2mm ; Non magnetic: 0.05mm

Memory: 8 Sets*32 Units

Voice Broadcast: V (only in chinese)

Data Export: Connecting Computer With Usb Cable

Power Supply: 3.7V 850mAh Li-ion

Charging Specification: DC 5V/1A Micro USB interface

Working Temperature & Humidity:0°C-50°C, 10%-80%RH

Storage Temperature & Humidity:-10°C- 50°C, 10% - 70%RH

Dimension:120x52x26mm
