SmartSensor AR3125 Voltage Insulation Tester (500V/1000V/2500V/5000V, 0 - 1TΩ ) | EMIN.CO.TH

Insulation Tester
SmartSensor AR3125 Voltage Insulation Tester (500V/1000V/2500V/5000V, 0 - 1TΩ )

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

Product image

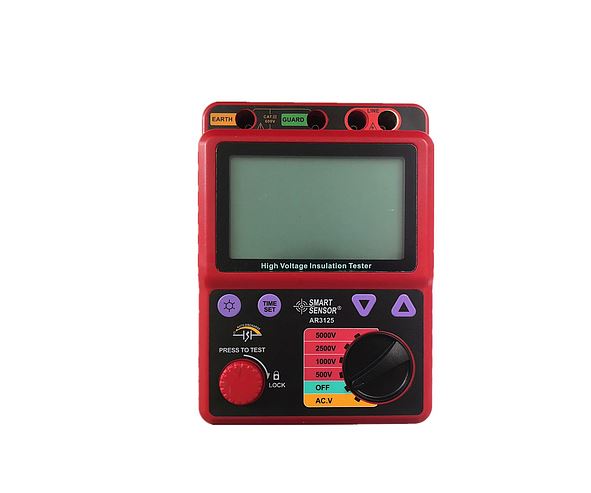

SmartSensor AR3125 Voltage Insulation Tester (500V/1000V/2500V/5000V, 0 - 1TΩ )

ManufacturerSMARTSENSOR(View more products from this manufacturer)

ModelAR3125

OriginChina

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

SPECIFICATIONS

Rated Voltage: 500V/1000V/2500V/5000V

Testing Range:

+500V:0.0~999MΩ

+1000V:0.0~1.99GΩ

+2500V:0.0~99.9GΩ

+5000V:0.0~1000GΩ

Accuracy: ±5%rdg±5dgt

Resolution: 1.0V

DC/AC Voltage Test: 30~600V

Overload Protect: AC 1200V/10sec

Withstand Voltage: AC 8320V/5 sec

Insulated Impedance: 1000MΩ

Max. Short Circuit Current: 1.4mA

Polarization Index: √

External DC Adapter: √

Power: C*8 battery

Product Net Weight: 1027g

Product Size: 153*213*95mm
