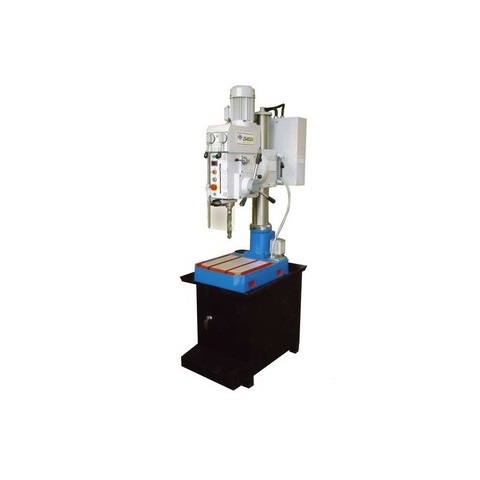

Max drilling diameter and tapping diameter: Φ25/M16
Max travel of spindle: 110
Max distance from spindle to generating line of column: 240
Max distance from spindle end to the surface of base worktable: 650
Max travel of spindle box: 500
Spindle taper bore: 3
Spindle speed steps: 6
Spindle speed range: 125~2825
Effective working area of worktable: 310x320
Diameter of column: Φ95
Power of motor: 0.75
Machine dimension: 740x500x1500
Packing dimension: 820x620x2250
Net weight/Gross weight: 230/280
Accessories: Shalf sleeve for taper shank tool, Key type drill chuck, Connecting bar for drill chuck, Wedge for taper shank tool, Double open end spanner.
