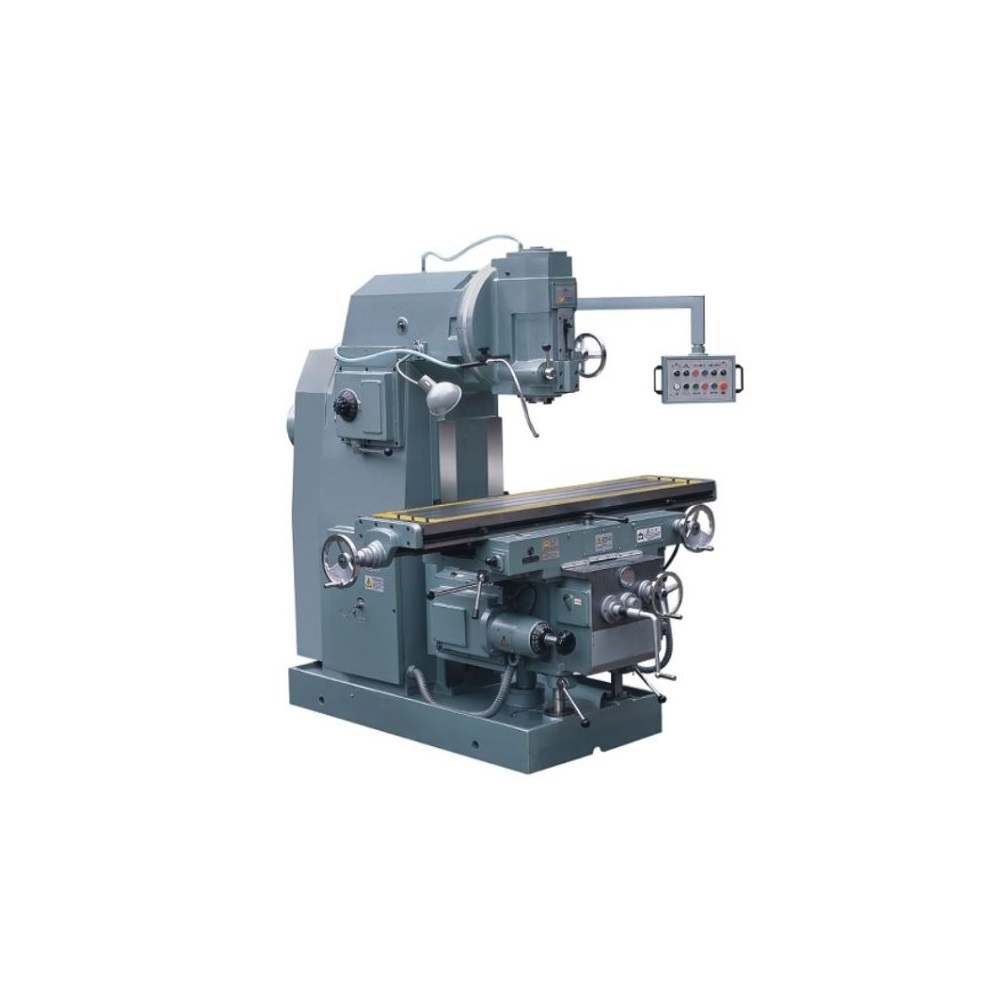

SMAC VM42A/1 Vertical Knee-type Milling Machine

Table size (mm): 420 x 2500

Longitudinal travel (Manual/Power) X (mm): 1600

Cross travel (Manual/Power) Y (mm): 410/400

Vertical travel (Manual/Power) Z (mm): 460/450

Feed speed steps: 15

Rapid feed ranges

Longitudinal X (mm/min): 10-1250

Cross Y (mm/min): 10-1250

Vertical Z (mm/min): 2.5-315

Min. distance from spindle end to table (mm): 340-790

Quill travel (mm): 90

Spindle speed steps: 20

Spindle speed ranges (rpm): 18-1400

Main motor power (kg): 11

Overall size (cm): 265 x 220 x 276

Net weight (kg): 5400

Standard Accessories: Tool bar; Reducing sleeve; Tools; Manuals

Optional Accessories: Machine vice; Rotary table; Dividing head; Spring collect; Tool box; Iron wedge; DRO; Transmission box (X53K/1)
