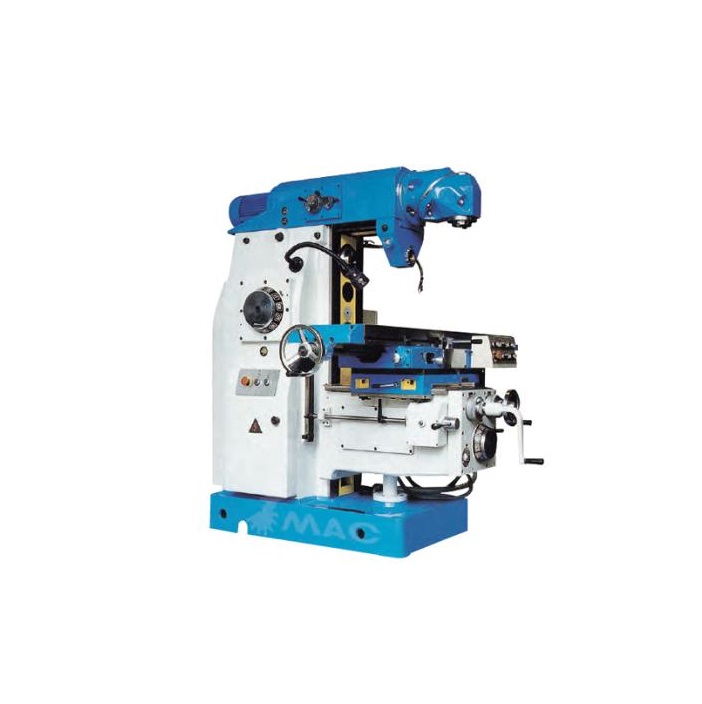

SMAC USM30S Swivel Head Universal Milling Machine

Table surface: 300 x 1150mm

Worktable traverse

Longitudinal: 680mm

Cross: 235mm

Vertical: 400mm

Range of feed speeds

Longitudinal, cross: 12-720mm/min

Vertical: 4-240mm/min

Speed of rapid traverse

Longitudinal, cross: 2100mm/min

Vertical: 700mm/min

Number of feeds: 14 steps

Number of T-slots and slot width: 3 x 18mm

Max. rotaions angle of table: 45

Level spindle taper: 7:24 No: 40

Milling head spindle taper: 7:24 No: 40; Morse No: 3

Level spindle

Grade of speed: 12 steps

Range of speed: 35-1600rpm

Milling head spindle

Grade of speed: 8 steps

Range of speed: 67-1600 rpm

Main drive motor

Milling head spindle: 2.2kw 1440rpm

Level spindle: 4kw 1440rpm

Feed motor: 0.75kw 1380rpm

Coolant Pump: 40w 2500rpm

Travel of ram: 470mm

Overall dimensions: L x W x H 1695 x 1535 x 1728mm

Net weight of machine: 2650kg

Gross weight of machine: 3450kg

Standard Accessories: Cutter Arbor and Collars Φ22 Φ27mm 1set; End Miling Arbor Φ22 Φ27mm 1set; Arbor Drawing Bolt 1set; Anchor Bolts 1set; Wrenches 1set; Oil Gun 1set

Optional Accessories: Reducing sleeve MT2,MT3 collets; (Φ5,6,8,10,12,14mm) 1set; Levelling block 6pcs; Boring tool holder Φ4-Φ160 1set; Universal dividing head 125mm 1set; Rotary work table Φ320 1set; Plain Vice 160mm 1set; Face milling cutter Φ80 Φ100 Φ125 1set; Rack Milling Attachment Module 2-4.5; (D.P.12-6 optional) 1set
