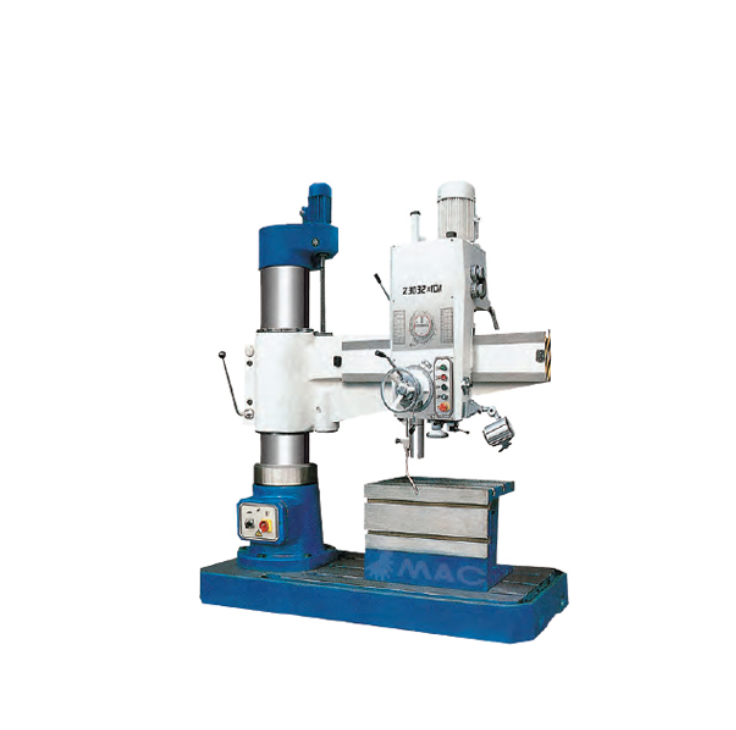

Max. Drilling capacity (mm): 32
Distance Spindle axis to column generating line (mm): 200-1300
Spindle taper (mm): MT4
Spindle travel (mm): 250
Spindel speeds range (mm): 71-1800
Spindle speeds series: 8
Range of Spindle feeds (mm/r): 0.13-0.54
Spindle feed: 4
Max. Distance nose to working surface of base (mm): 264-1064
Overall Size (cm): 204x75x236
Power of main motor (W): 2.2
G.W/N.W: 2100/1600
Packing dimension (cm): 187x97x220
Standard Accessories: Box shape worktable, Taper sleeve, Tool releasing Wrench, Drift, Eyelet bolts
Optional Accessories: Quick instead chuck, Tapping chuck, Grease gun
