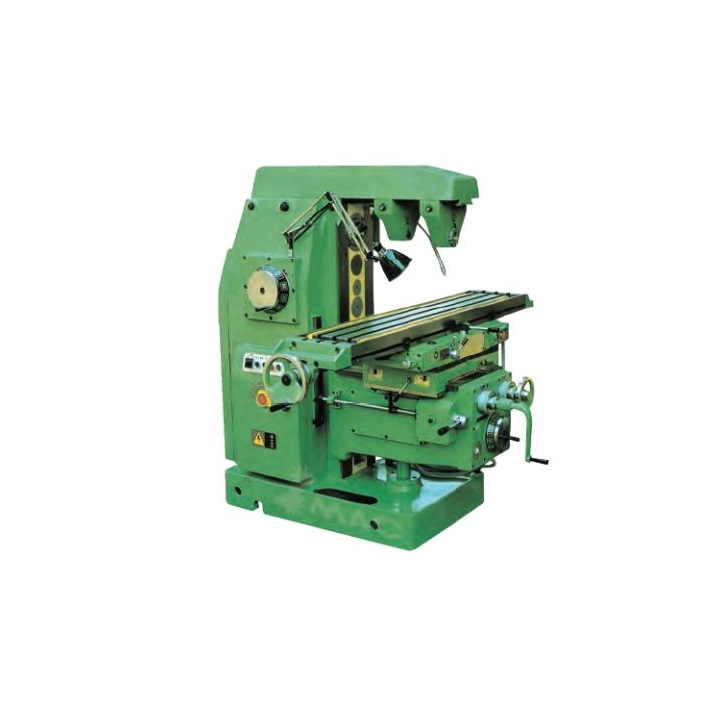

SMAC HUM30A Universal Knee-type Milling Machine

Table size (mm): 300 x 1150

T slots (N x W x D) (mm): 3 x 18 x 70

Longitudinal travel X (mm): 680

Cross travel Y (mm): 235

Vertical travel Z (mm): 400

Arbor diameter (mm): Ø22 Ø27

Spindle hole taper: MT4 7:24

Spindle speed steps: 12

Spindle speed ranges (r/min): 35-1600

Feed speed steps: 14

Feed speed ranges

Longitudinal X (mm/min): 12-720

Cross Y (mm/min): 12-720

Vertical Z (mm/min): 4-240

Main motor power (kw): 4

Main motor speed (r/min): 440rpm

Cooling pump power (kw): 40w,2500rpm

Overall size (mm): 1690 x 1535 x 1630

Net weight (Kg): 2100

Standard Accessories: Milling arbors; Tools; Draw-bolts; Manuals

Optional Accessories: Universal milling head; Rotary table; Machine vice; Milling chuck collets
