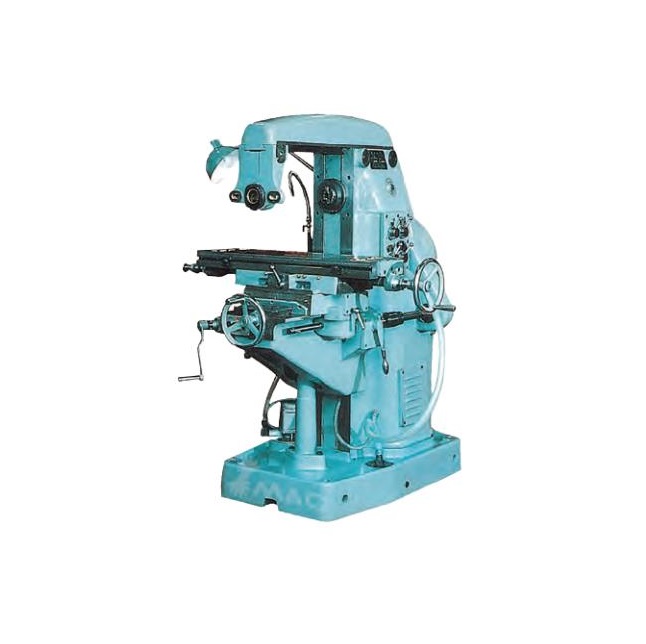

SMAC HUM24 Universal Knee-type Milling Machine

Table size (mm): 240 x 810

T slots (N x W x D) (mm): 3 x 14 x 54

Longitudinal travel X (mm): 480

Cross travel Y (mm): 165

Vertical travel Z (mm): 300

Max. rotary angle of table: ±45°

Arbor diameter (mm): Ø22 Ø27

Min. distance between spindle center to talbe (mm): 60

Spindle hole taper: MT3 or 30# 7:24

Spindle speed steps: 6

Spindle speed ranges (r/min): 31-570

Distance between spindle center to arm (mm): 160

Feed speed steps: 6

Feed speed ranges

Longitudinal X (mm/min): 7.3-111.9

Cross Y (mm/min): 14.9-226.3

Vertical Z (mm/min): 6-90.4

Main motor power (kw): 1.5

Main motor speed (r/min): 1430

Cooling pump power (kw): 0.12

Overall size (mm): 1400 x 1240 x 1478

Packing box size (mm): 1500 x 1340 x 1760

Net weight (Kg): 1200

Standard Accessories: Milling arbors; Tools; Draw-bolts; Manuals

Optional Accessories: Universal milling head; Rotary table; Machine vice; Milling chuck collets
